Marine Anchor Light – CXH8-1


The scope of application

Applied to the ships as for navigation lamp signal or use for anchor and take the ground as lamp signal.

Products characteristic
  1. The shell is made of good quality steel, lampshade adopts good quality glass.
  2. The shell structure has fine seal performance, and it is convenient to install and remove.
Production authentication
  1. Conform to THE I INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
  1. Conform to GB/T 3028-1995 standard.
Specification
Name Type Visibility Level arc Lamp holder Bulb Cable outside
diameter
Protection class Material Color Weight

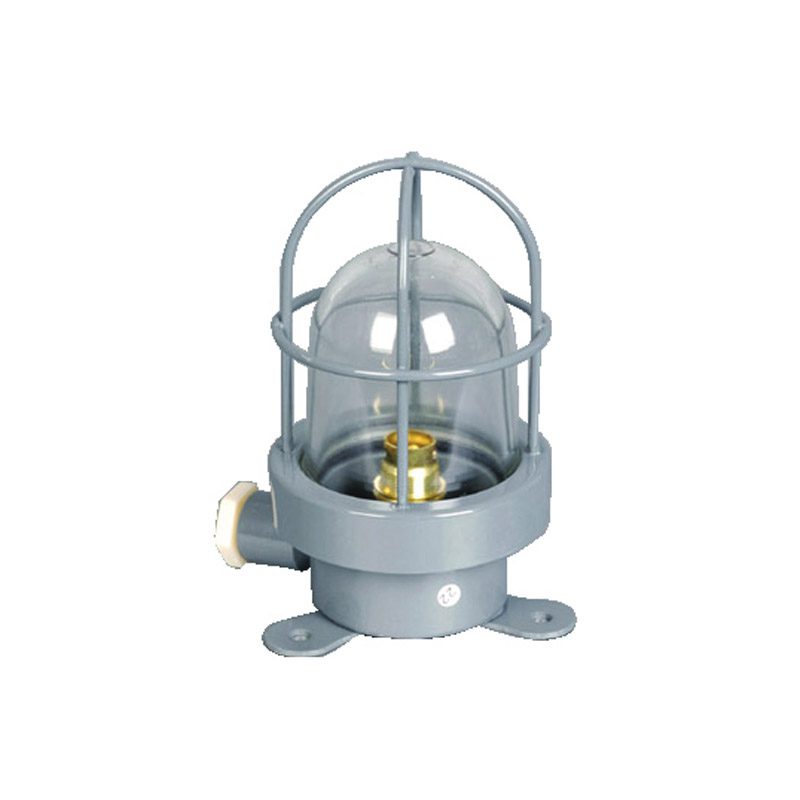

Anchor light CXH8-1 3n.m 360° E27 220V/40W





110V/40W

Φ10-Φ12 IP55 steel Transparent 1.7Kg

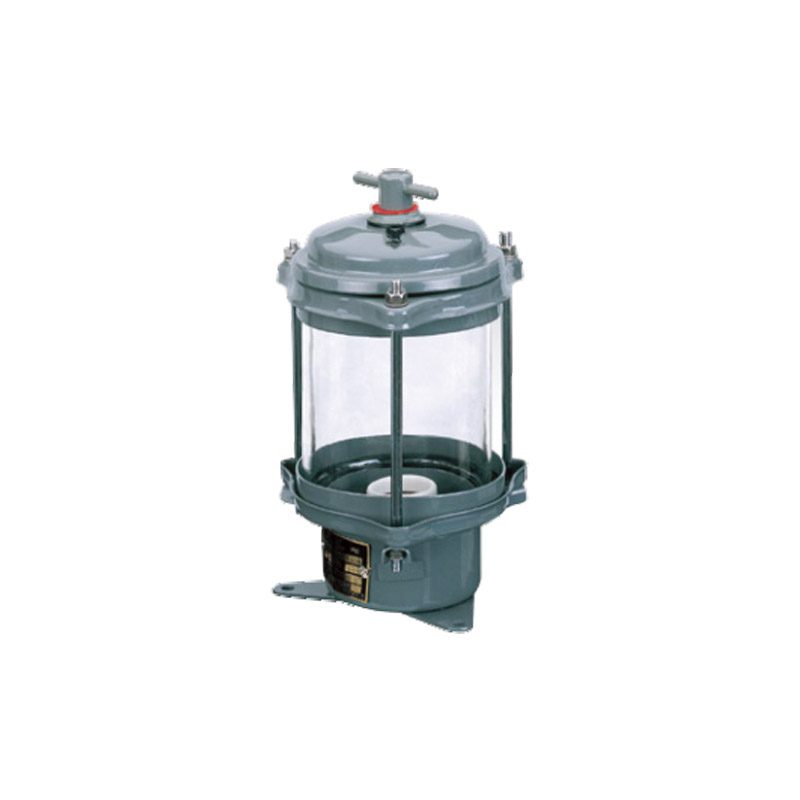

Anchor light CXH8-2 2n.m 360° B15d 24V/15W





24V/30W

aluminum Transparent 0.75kg
