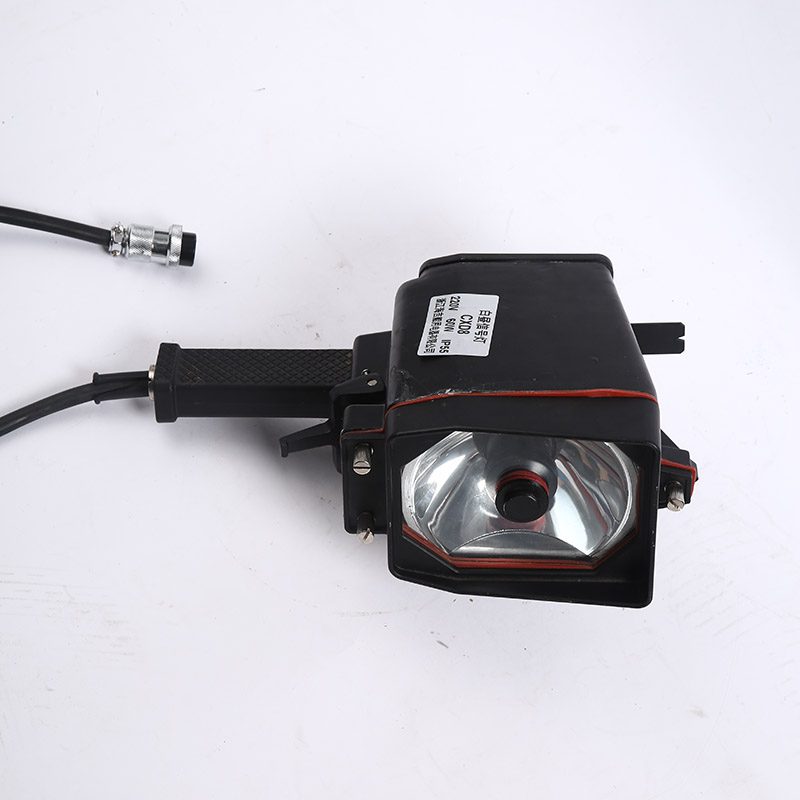

Marine Daylight Signal Light – CXD8
Marine Daylight Signal Light – CXD8

Marine Daylight Signal Light – CXD8

The scope of application

Applied to daylight signal communication between the ships.

Products characteristic
  1. With good quality cast aluminum shell and mechanical flash device.
  2. Light .convenient to operate and bring.
  3. Adopt standard
  4. Conform to MS.C.95(72) DECISION and JISF8456-1996
Adopt standard

Conform to MS.C.95(72) DECISION and JISF8456-1996

Main technical parameter
Daylight Signal Light CXD8
voltage / Power 24V/60W
Lamp holder G6.35
Plug 25M-4A Four pin
Protection class IP44
Cable outside diameter 059.5
Weight 2.6kg
Charger CXD8-CDX
Input AC110V/60HZ. AC220V/50Hz/60Hz
Output AC24V、AC 12V
Temperature -25℃~45℃
Socket Four pin 25M-4B / Three pin 25M-3B
Protection class IP20
Weight 3.6kg

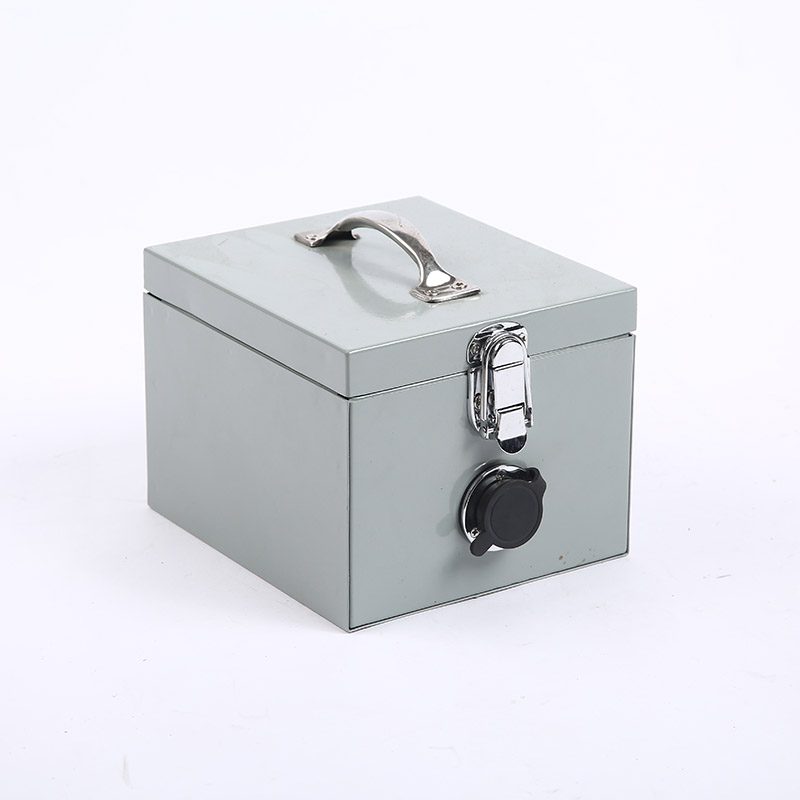

Battery CXD8-XDX
Capacity 7Ah
Charge voltage 27.8V/13.9V
Discharge stop voltage 24V/12V
Temperature -25℃〜45℃
Socket four pin 25M-4B
Protection class IP20
Weight 4.0kg
