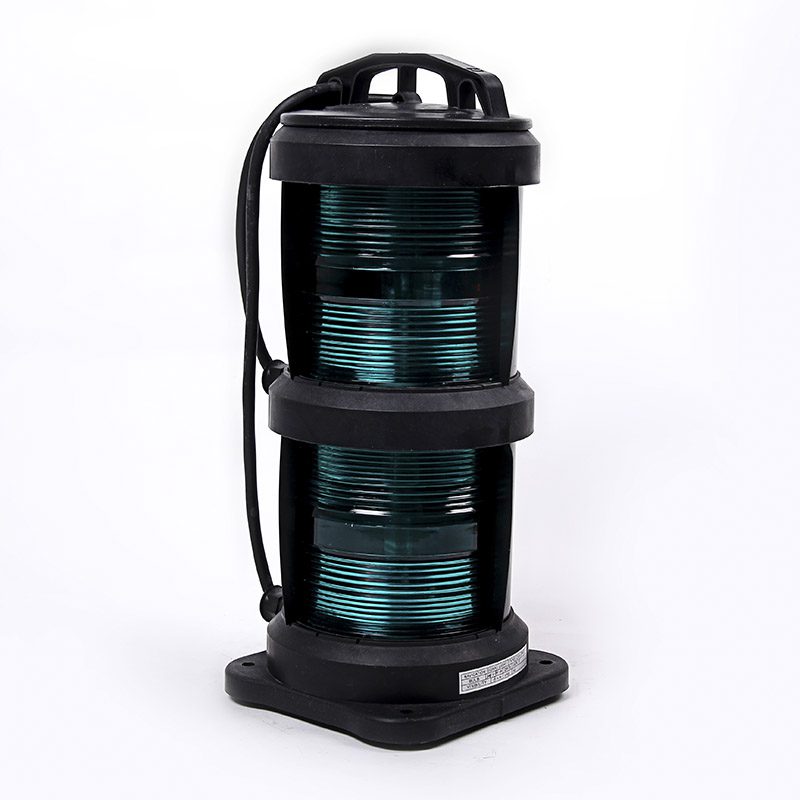

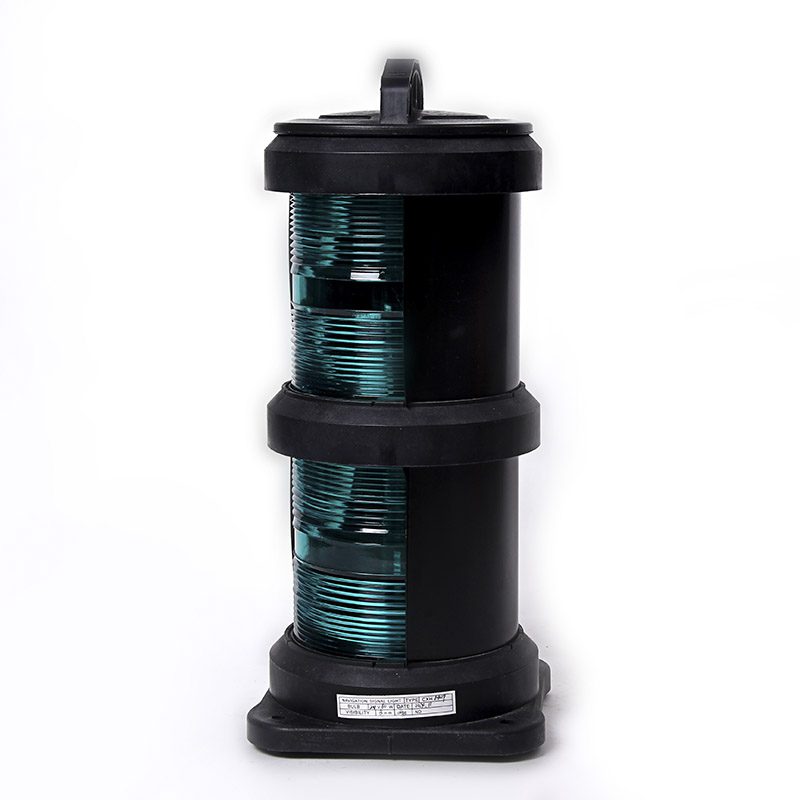

Marine Double-deck Navigation Signal Light – CXH1-101P

The scope of application

Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation

Products characteristic

1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The connection of the signal light’s lamp holder and the base adopt plug-in type, can replace the up and down bulb as open the cover.
4. The signal lights adopt the signal light’s bulb which conforms to the ship norm, and the average life is not lower than 700h.
5. The signal lights can work normally under the temperature -30*0-50*13.

Adopt standard

1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA.1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC60598-1-2008.
3. Conform to the standard of marine electric signal light’ technical condition GB/T 3028-1995

Specifications

Remark: This lamp can be installed conveniently and its bulb can be replaced easily. the shell is made of engineering plastics which has the feature
of corrosion prevention and shock resistance. the lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not
discolor, Conform to IEC92-306-1980 standard.
