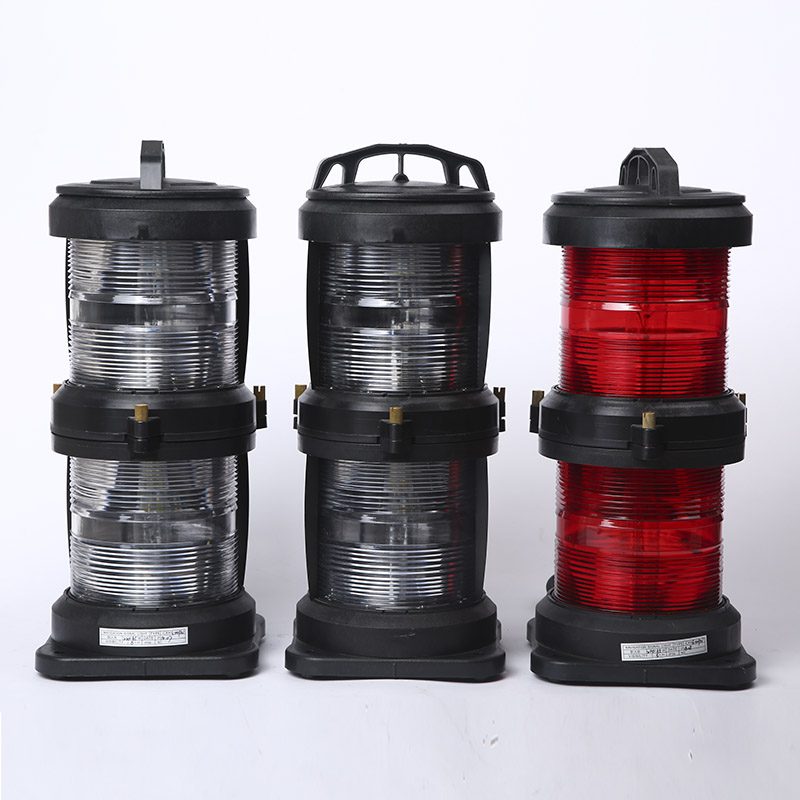

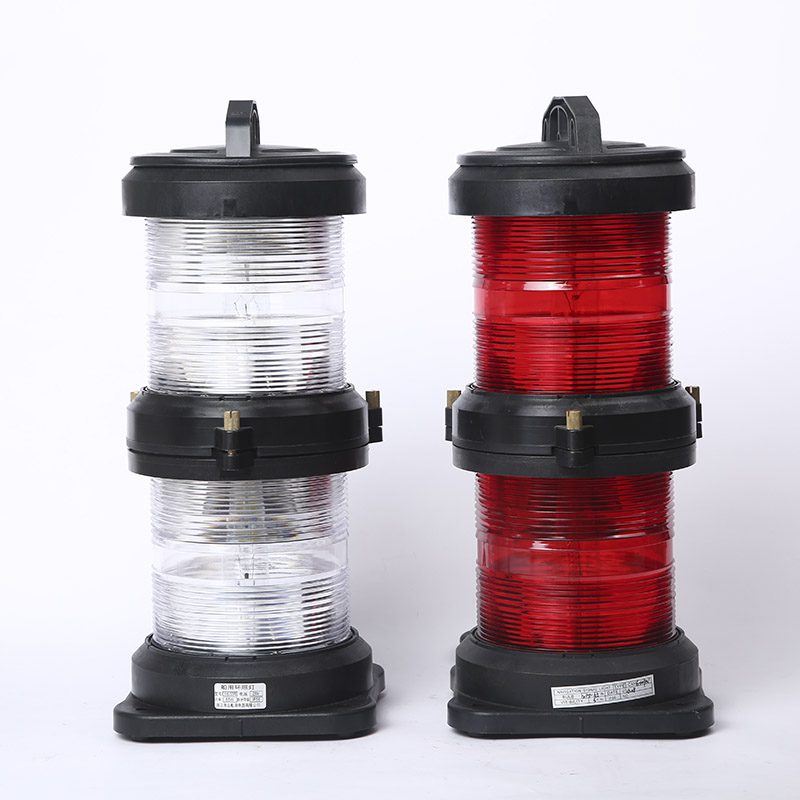

Marine Double-deck Navigation Signal Light – CXH1-101PN
The scope
Fit for the ships with the length 50M or above 50M as lamp signal liaison when night navigation.
Products characteristic

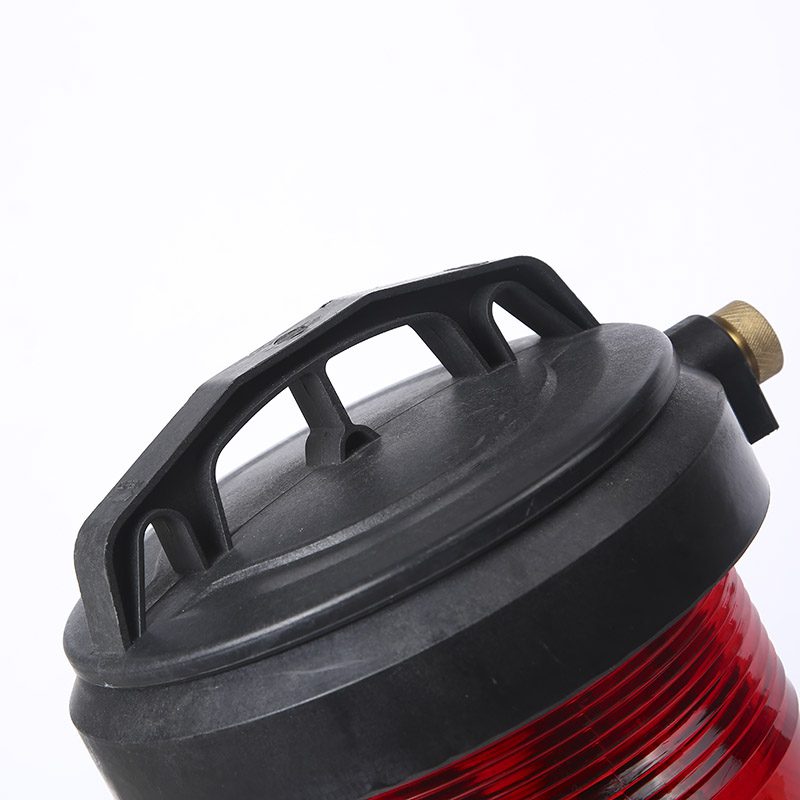

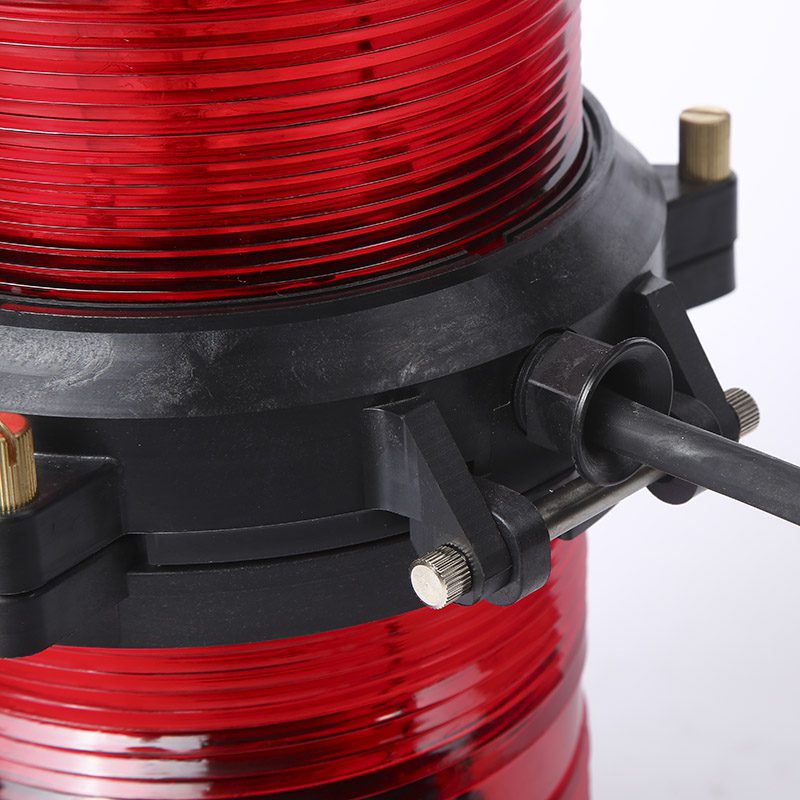

- It is convenient to install and replace the bulb, and there are automatic leak holes in the bottom.
- The shell is made of high-intensity engineering plastics PA+GF injection has the feature of corrosion-resisting, shock resistance, etc.
- The lampshade is made of PC, has the feature of ultraviolet radiation resistance and does not discolor.
Adopt standard
- Conform to <THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA, 1972> and <GRADE ENTRY
AND BUILDING NORMS FOR STEEL SHIPS>. - Conform to GB/T 3028-1995 standard.
Specification
| Name | Type |
Visible Distance |
Level Arc |
Lamp Holder |
Bulb |
Protection Class |
Color | Weight |

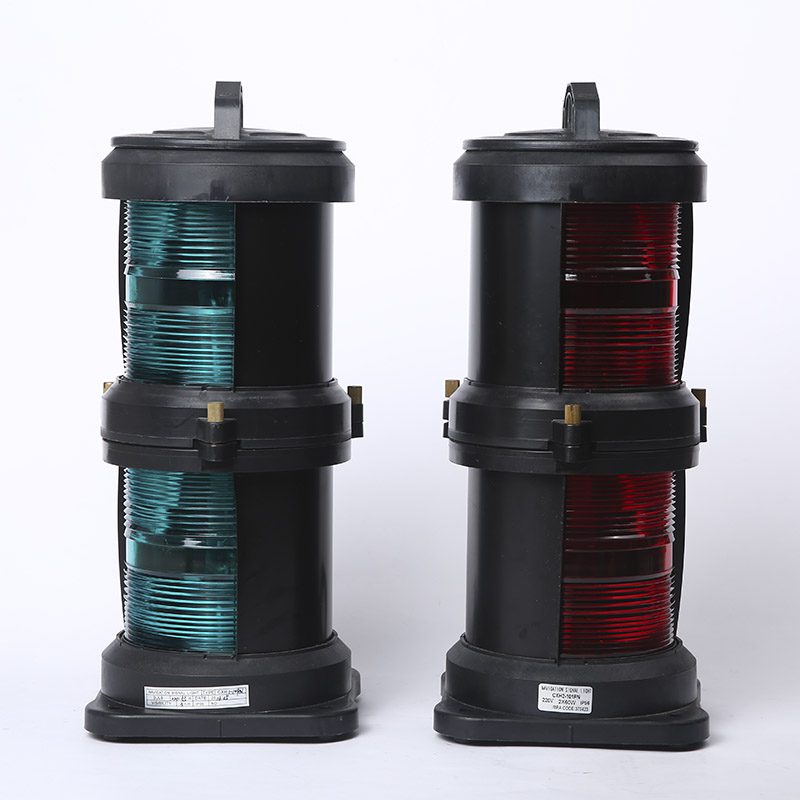

| Double-deck starboard light |
CXH1-101PN | 3n.m | 112.5° |
P28S
|
220V/2X65W
|
IP56
|
Green | 4.3KGS |
| Double-deck Port light |
CXH2-101PN | 3n.m | 112.5° | Red | 4.3KGS | |||
| Double-deck Masthead Light |
CXH3-101PN | 6n.m | 225° | Transparent | 4.3KGS | |||
| Double-deck Ster n Light |
CXH4-101PN | 3n.m | 135° | Transparent/ Yellow |
4.3KGS | |||
|
Double-deck All-round
Light |
CXH6-101PN | 3n.m | 360° | Red/ Green/ Transparent |
4.15KGS |
