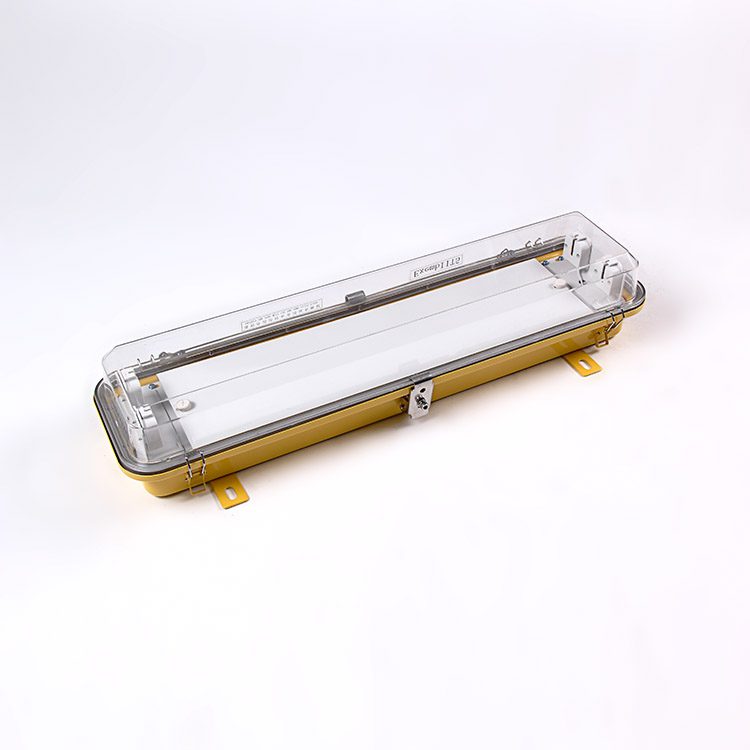

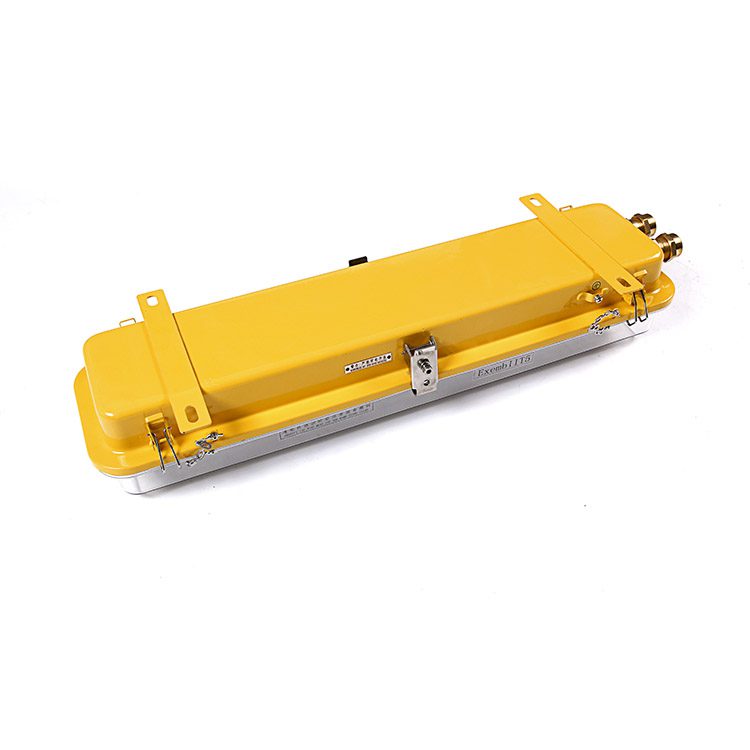

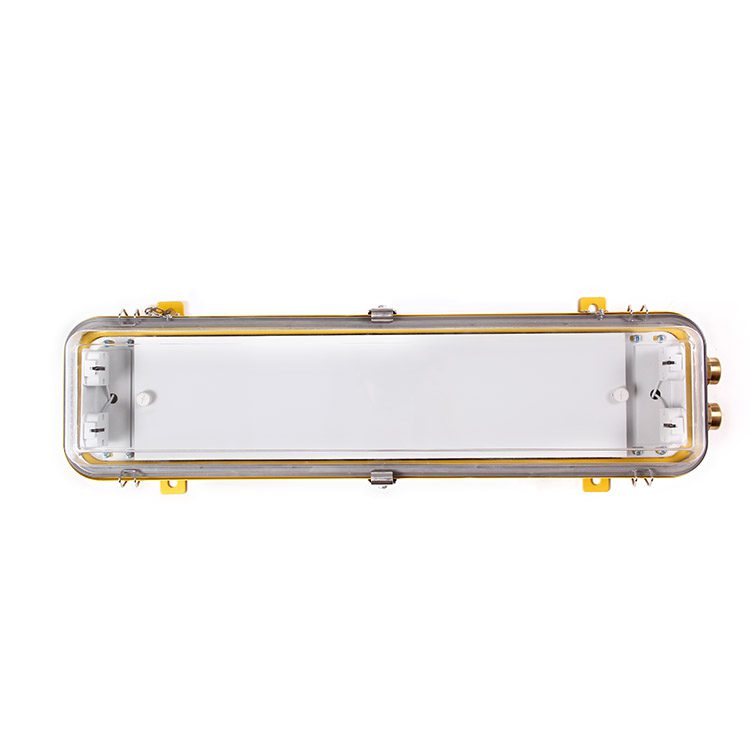

Marine Explosion-Proof Fluoresent Light – CFY


The scope of application

Applied to ship oil exploit platform, chemical product and explosive gas place zone 1 or zone 2.

Products characteristic
  1. The shell is made of good quality steel, the lampshade is good quality transparence pc.
  2. Integral type clip, high protection grade.
  3. Flameproof safety type structure.
Adopt standard

Conform to International IEC standard and GB3836、GB7000

Specification
Type Explosion-proof Mark Voltage Power Lamp holder Cable outside
diameter
Protection
class
Weight
CFY21-2 ExdellCT5

220V/50HZ

220V/60HZ

110V/60HZ

2x20W Fa6 C3 IP56 5.8kg
CFY41-2 2x40W 9.5kgs
