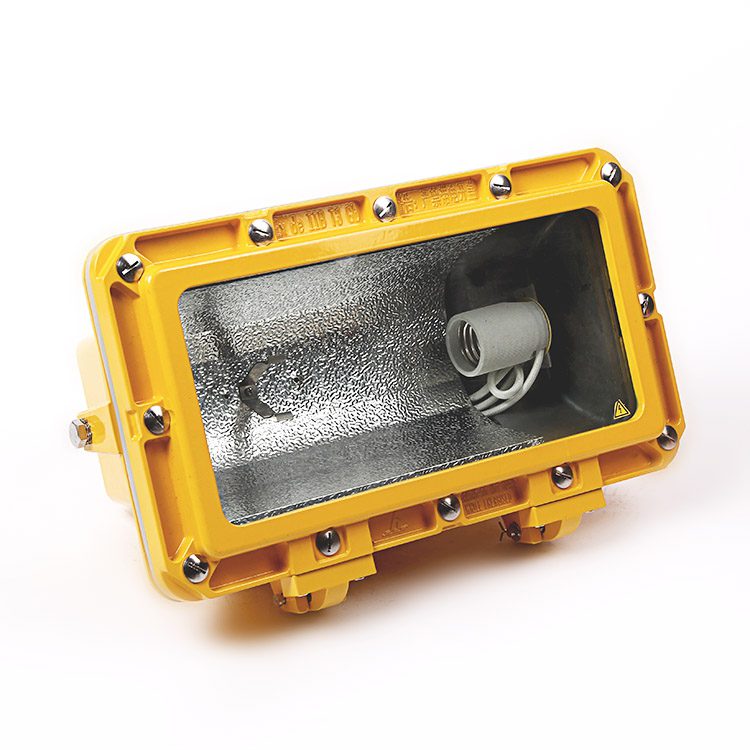

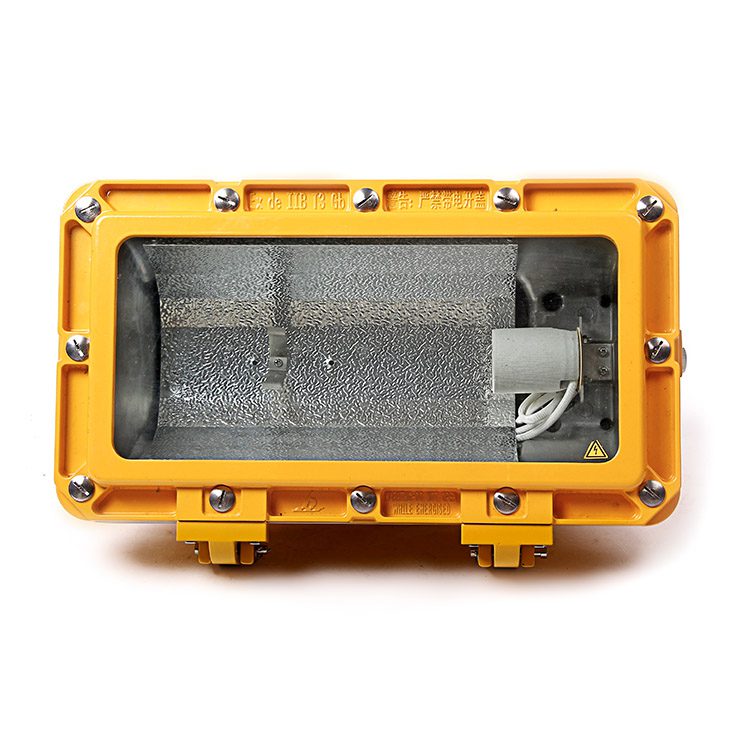

Marine Explosion Proof Spot Light – CFT2


Product certification
  1. Passed the examination of National Explosion-proof Safety Supervisor and Inspect! on Station for Luminaire.
  2. Approved by CCS (China Classification Society).
Product characteristic
  1. The shell adopts good quality cast aluminum, good quality toughened glass lampshade, The light body can adjust up and down 45 degrees.
  2. The lamp body adopts seal structure, has high waterproof performance and anticorrosive performance.
  3. Equipped ballast inside, no need to equipped ballast box (except the voltage is 110V/60H)
  4. Conform to GBADE ENTRY NORMS FOR STEEL SHIPS and National standardGB3836-2000, GB12045, En50014, En50018, En60079.
Specifications
Model Explosion-
proof mark
Voltage Power In luminous
flux
illuminant lamp
holder
Cable outside
diameter
protection
class
Weight
CFT2 Exde II BT3

220V/50HZ

220V/60HZ

110V/60HZ

250W 26000 hight-pressure sodium lamp E40 IP56 24.5kg
20500 metal halide lamp
Exde II BT2 400W 47000 hight-pressure sodium lamp
36000 metal halide lamp
