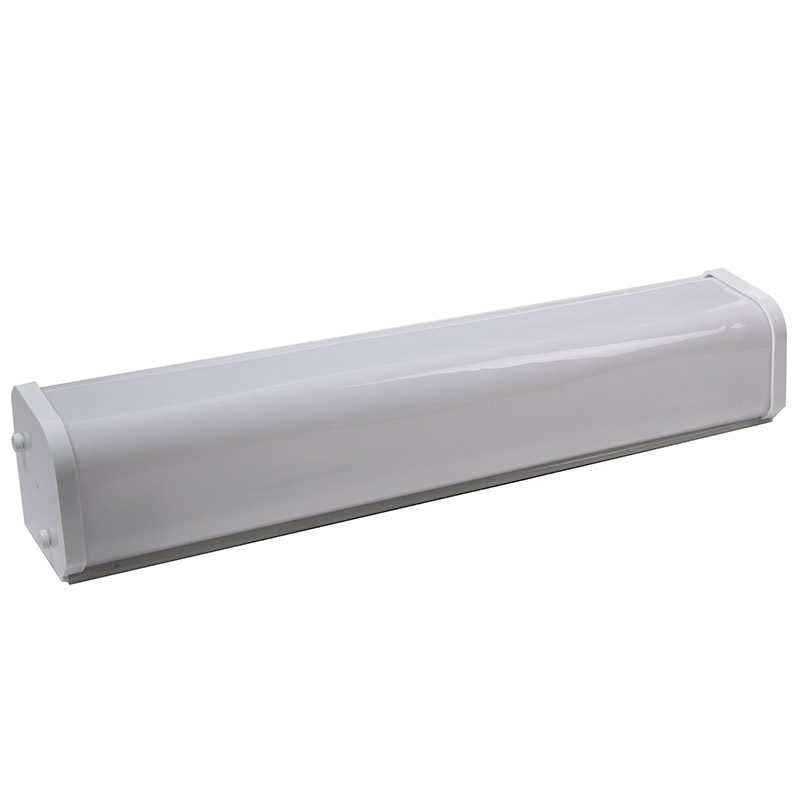

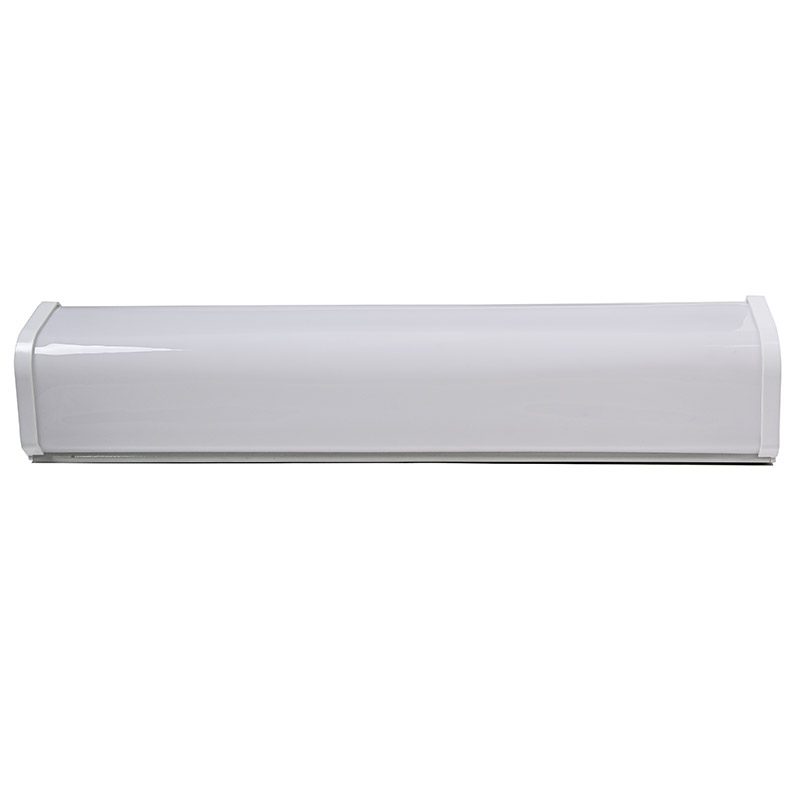

Marine Fluorescent Corner Light – JBY
Marine Fluorescent Corner Light – JBY

Marine Fluorescent Corner Light – JBY

The scope of application

Applied to illumination of dry cabins, such as the residence, retiring room, dining room, cab, operator of the sailors and passengers,

Products characteristic
  1. The installation way of the lamp is wall-type, compact structure, and delicacy appearance.
  2. The lampshade is a plug-in type and has a fine contact function.
  3. The lampshade is made of good quality organic, not discolor, fine toughness, softness ray, etc.
  4. The light equipped B15d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the<marking, remark clear that need the emergency device when order.
specification
type power voltage Power factor Lamp holder Protection class Weight remark
JBY15-1 1 *15W





110V/60HZ

220V/50Hz

220V/60HZ





 >0.85 G13







IP34





 3.2kg ——
JBY15-1E 3.2kg with emergency
JBY20-1 1 * 20W >0.85 G13 4.0kg —
JBY20-1E 4.0kg with emergency
JBY30-1 1 * 30W >0.85 G13 5.2kg —
JBY30-1E 5.2kg with emergency
