Marine Fluorescent Pendant Light – JCY20/JCY40


The scope of application

Applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck, etc. The environmental temperature for work is -20°C 〜+55°C.

Products characteristic
  1. Adopt seal structure, and have high waterproof performance, has a compact structure and delicacy appearance.
  2. Adopt the import spin-type of lamp holder performance, and it is convenient to connect inside.
  3. Equipped compensating capacitance inside the light, also has a good effect of start.

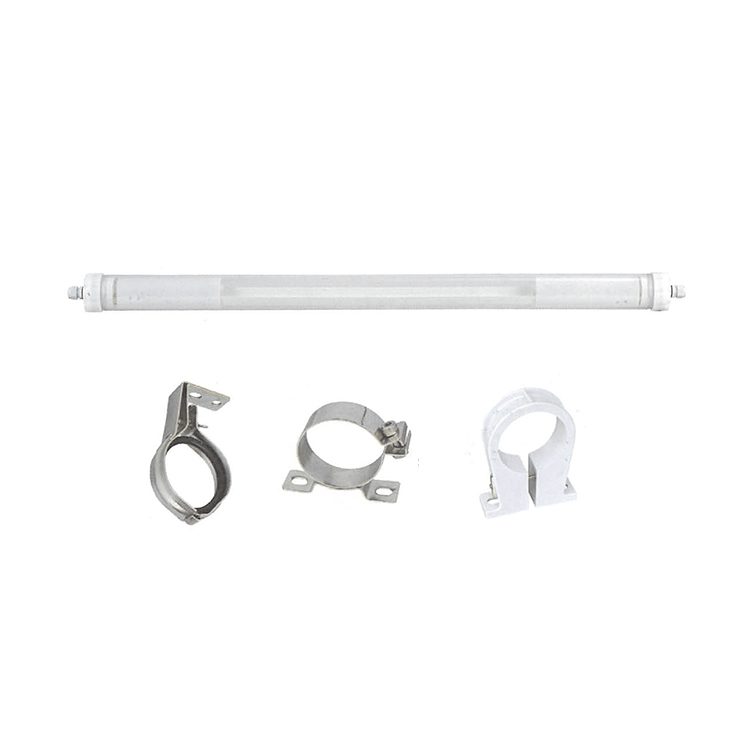

  4. This light has three types of brackets. Pls mark when order
Adopt standard

Conform to IEC60092—306-2009 standard and GRADE ENTRY NORMS FOR STEEL SHIPS.

Production authentication

The product approved by the CCS(China Classification Society).



Type JCY20-1 JCY40-1
Power 1*20W 1*40W
compensating capacitance 4.75pf 4.75pf
Weight 3kg 4.2kg
Voltage 100V/60Hz,220V/50Hz, 220V/60Hz
Power factor >0.85
Lamp holder G13
Cable outside diameter Φ8-Φ13
Protection class IP68
