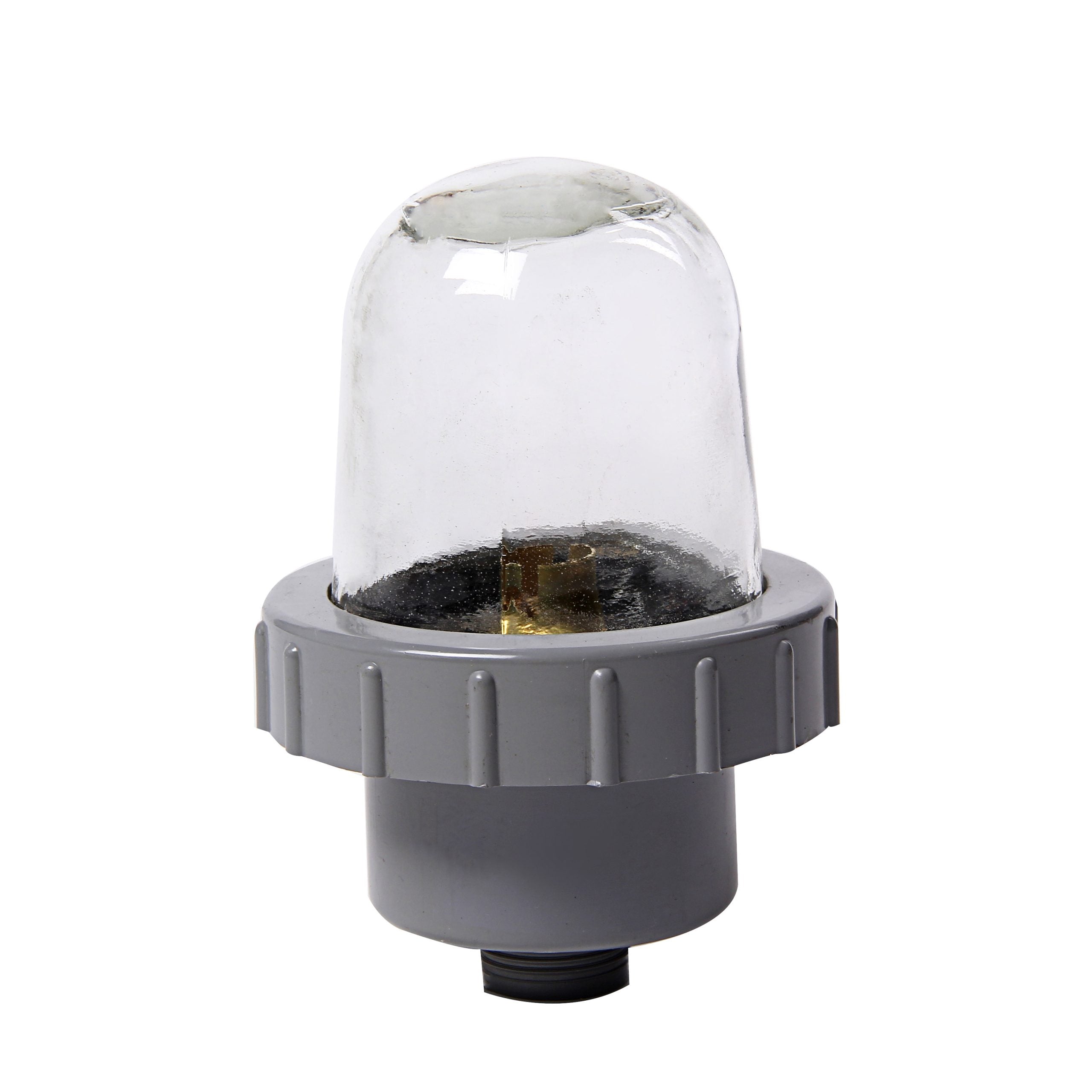

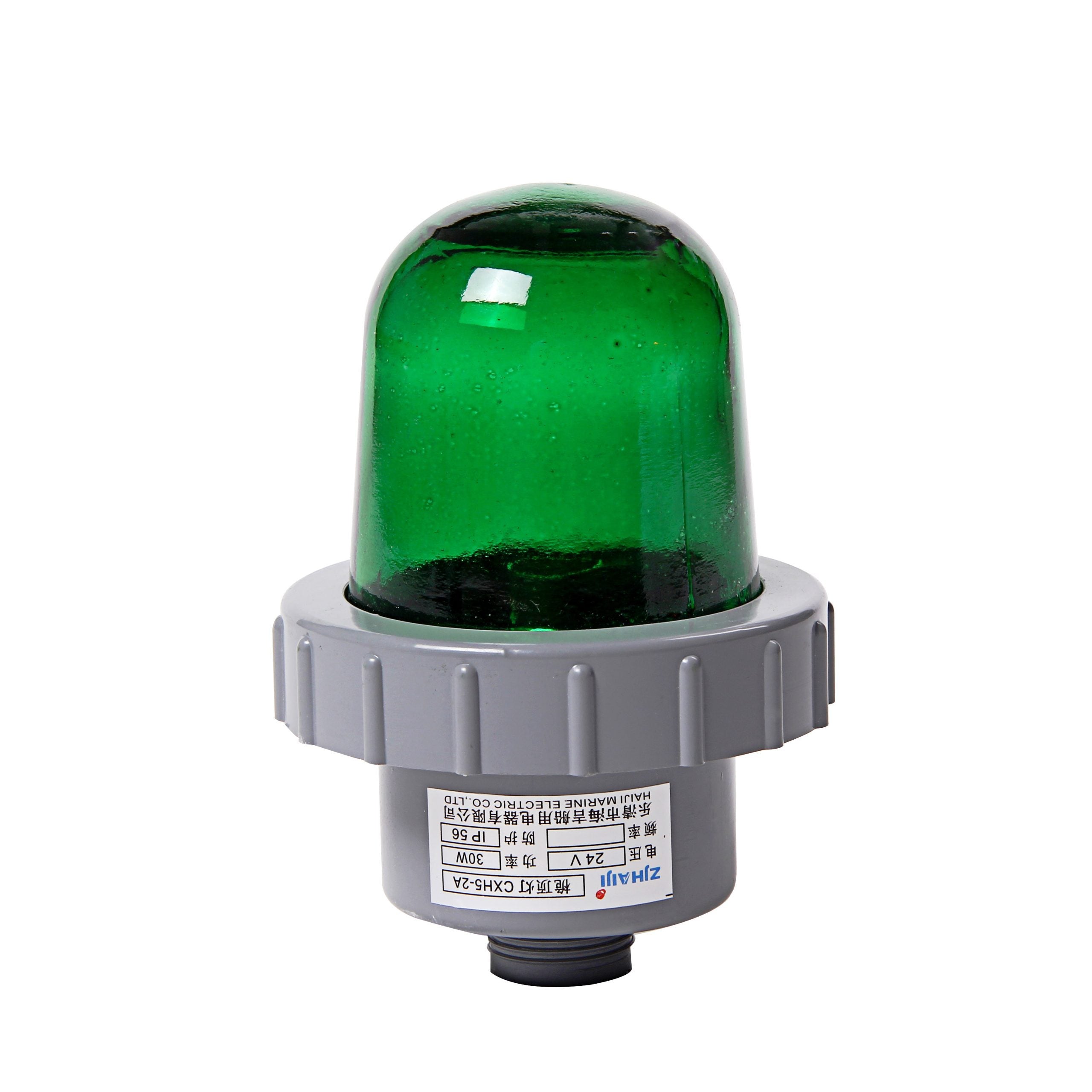

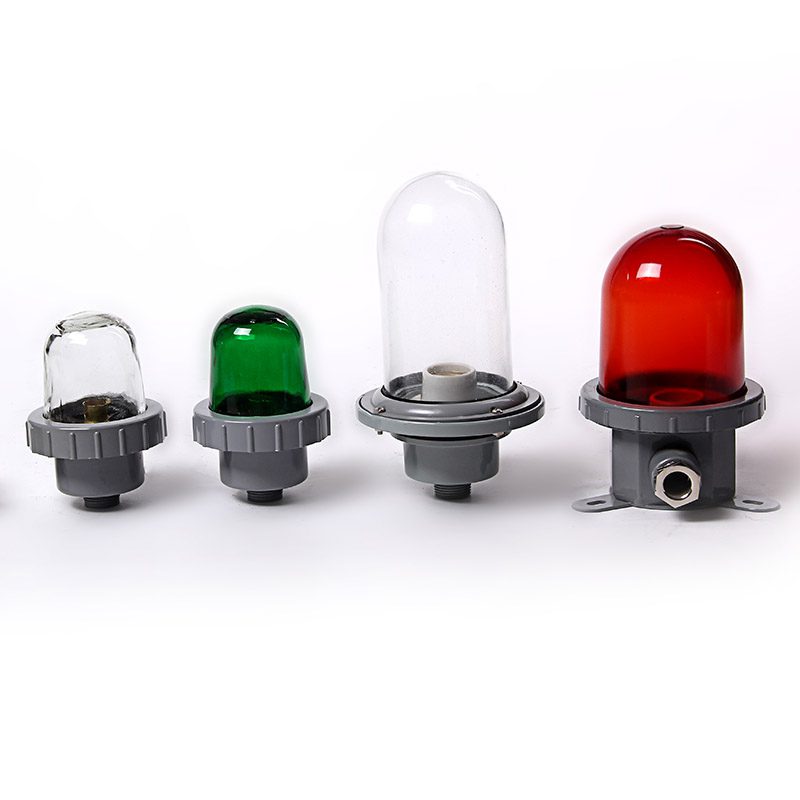

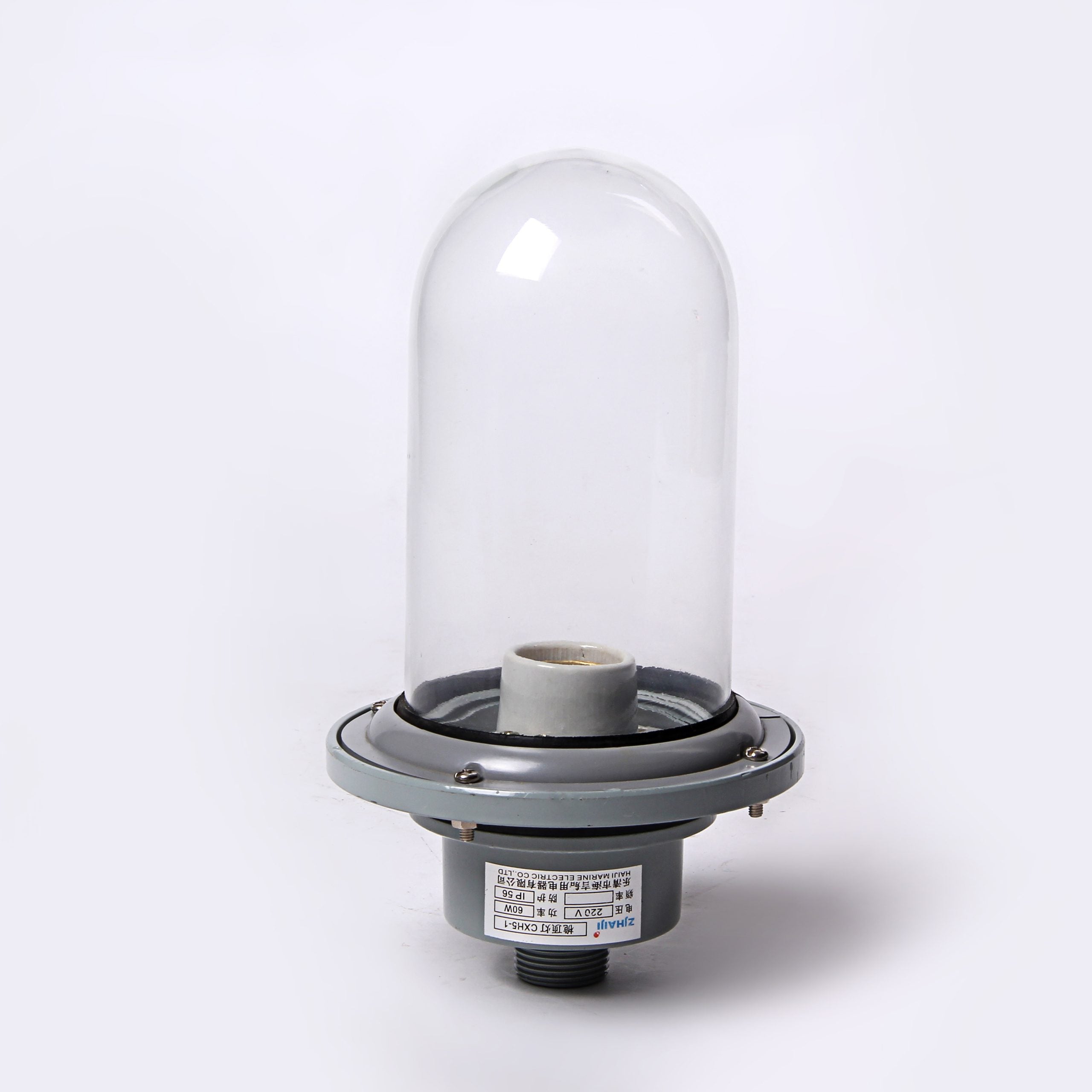

Marine Headlight – CXH5


The scope of application

Applied to the ships as lamp signal when night navigation.

Products characteristic
  1. Screw -type connecting flange, it is convenient to install and replace the bulb.
  2. The lampshade adopts good quality Pyrex glass, and it has good function of pervious to light.
Adopt standard
  1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
  2. Conform to GB/T 3028-1995 standard.
Specification
Type Visibility Level arc Lamp holder Voltage Power Protection class Cable outside
diameter
Color Material Weight
CXH5-1 3n.m 360° E27 24V





110V

220V

60W IP56 Φ12 transparent/
Red /Green /yellow /blue /purple
aluminum 0.9Kg
CXH5-1A Plastic 0.73Kg
CXH5-2 2n.m 360° B15d 24V 30W transparent/ Red/ Green/
blue
aluminum 0.4Kg
CXH5-2A Plastic 0.5Kg
CXH5-3 2n.m 360° B15d 12V





24V

15W transparent/ Green /Red Plastic 0.3Kg
