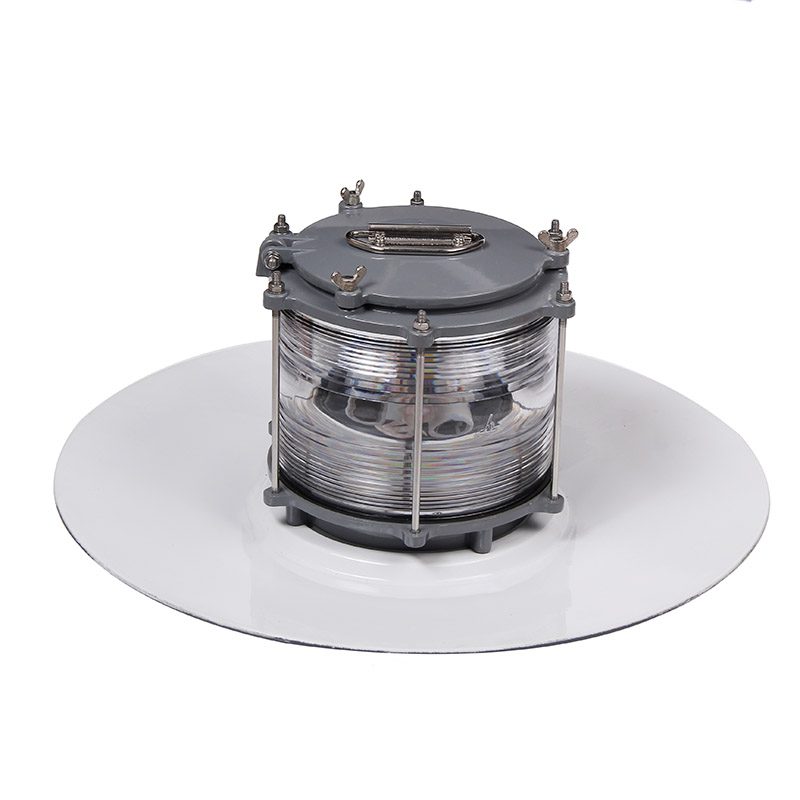

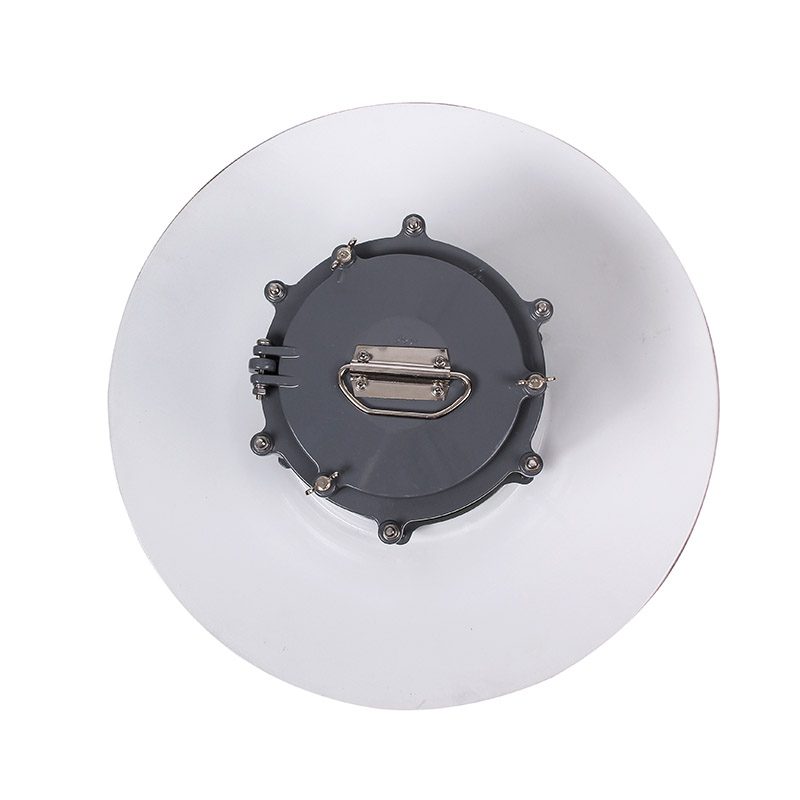

Marine Morse Signal Light – CXD7


The scope of application

Applied to the identification of the Morse signal light communication of ships.

Products characteristic
  1. The shell is made of good quality cast aluminum or cast brass(a type of CXD7-B), the lampshade adopts injection of PC, the structure is firm.
  2. The lamp adopts the seal structure and has fine waterproof.
  3. Equipped the special ship signal bulb.
Adopt standard

Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.

Main technical parameter
Visibility > 5n.m
Horizontal optical angle 3600
Lamp holder B22d
Voltage/Power 220V/3x25W、110V/3x25W
Lens color transparent
Protection class Ip55
Weight 6.4kg
Cable outside diameter Φ14-Φ16
