Marine Searchlight – TZ1


The scope

Fit for remote illumination of ship night navigation, lifesaving, warning, etc, and aim searching.

Products characteristic
  1. Equipped the sphere toughened glass reflector and the device of focus adjustment which can adjust the focus up and down, front and black neaty, and has the functions such as high luminous intensity, far illumination distance.

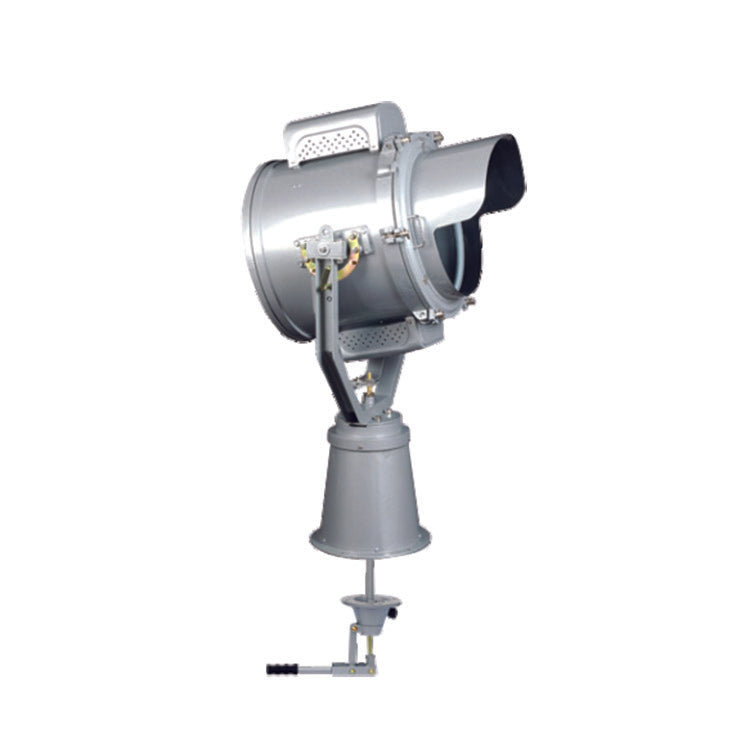

  2. TZ1 has a steel shell, ball plate mounted on a base, also equipped with lighting gear which can control the light body by hand to rotate for 180° horizontally and pitching 30 °, Equipped the resistant nee box when supply DC 110V, please remark clear when ordering.

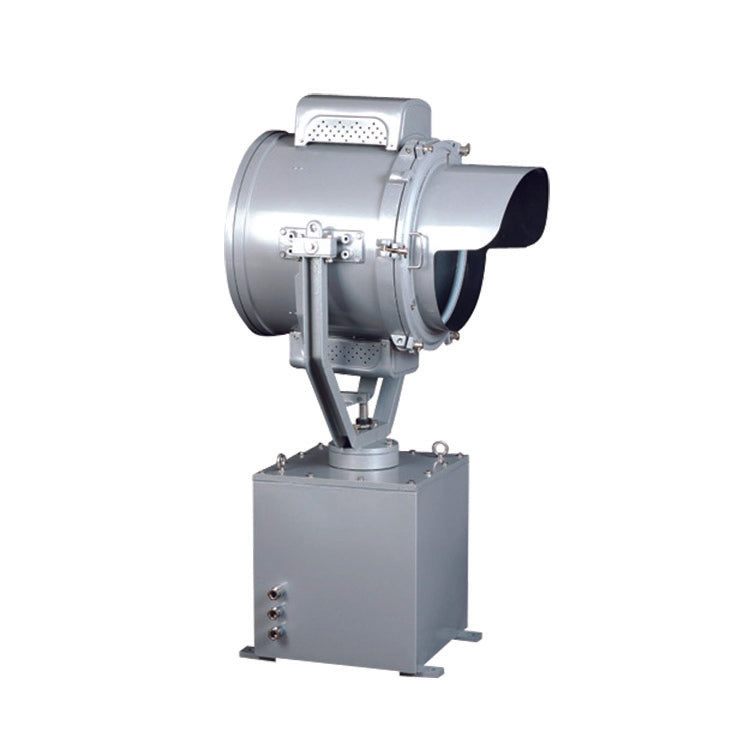

  3. TZ1 -A has stainless steel shell, a micro motor is mounted on base, and can operate the light body to rotate for 180° horiz on tally and pitchi ng 30° by con troller.
Specification
Type Voltage Power Lamp
Holder
illuminant luminous flux Protection class Weight Annex
TZ1 DC110V 1000W For special
Use
Sphericity mercury
xenon light
6000 IP55 68kg

Lift-pole

Ballast

TZ1-A AC220V 6000 IP55 89kg

Controller

Ballast
