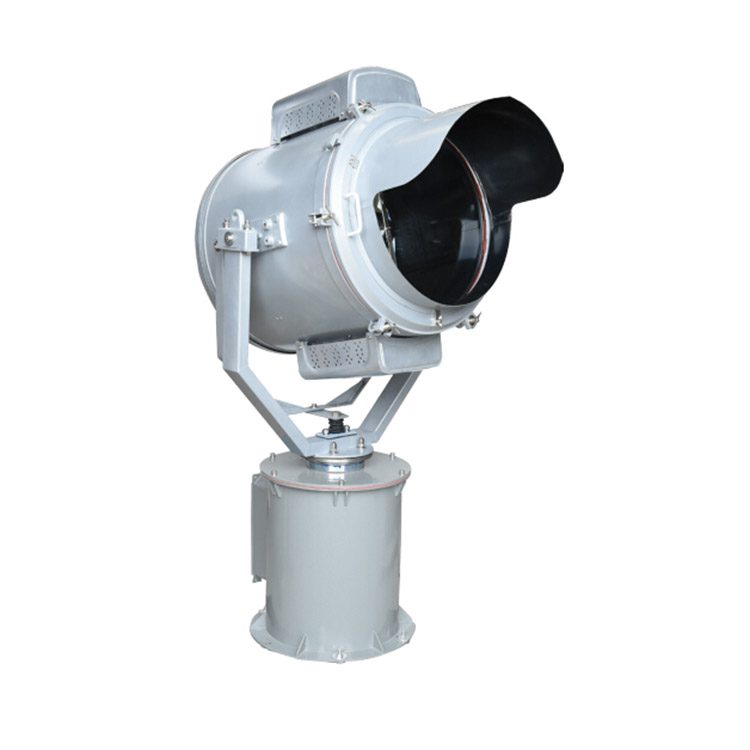

Marine Searchlight – TZ2
The scope
Fit for remote illumination of ship night navigation, lifesaving, warning and aim searching, etc.
Products characteristic
Equipped the sphere toughened glass reflector and the device of focus adjustment which can adjust the focus up and down, front and black neaty, and has the functions such as high luminous intensity, far illumination distance.
TZ 2 has a steel shell, ball plate mounted on a base, can control the light body by hand to rotate for 180° horizontally and pitching 30°.
TZ 2-Ahas stainless steel shell, a micromotor is mounted on a base, and can operate the light body to rotate for 180° horizontally and pitching 30° by the controller.
Specification
Type | Voltage | Power |
Lamp Holder |
illuminate | luminous flux | Protection class |
Cable outside diameter |
Weight | Annex |
Tz2 | DC110V | 2000W | For special use | Sphericity | 60000 | IP56 | Φ10-Φ12 | 40kg | Lifter Ballast |
TZ2-A | AC220V | mercury xenon light |
60000 | IP56 | Φ10-Φ12 | 80kg |
Controller Ballast |
