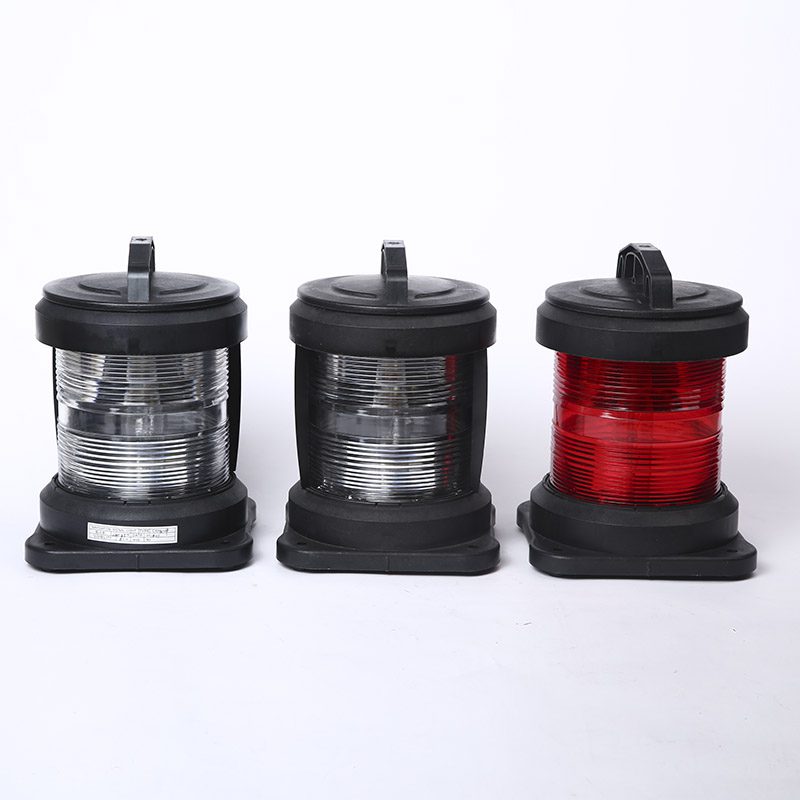

Marine Single-Deck Navigation Signal Light – CXH-11P

The scope of application

Applied to the ships with the length 50m or above 50m as lamp signal liaison on when night navigation.

Products characteristic

1. The shell is made of high-strength engineering plastic PA+GF injection, the lampshade adopts injection of PC, the lens hood adopts the good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The connection of the signal lights lamp holder and the base adopt plug-in type, can replace the up and down bulb when open the
4. The signal lights adopt the signal lights bulb which conforms to the ship norm, and the average life not lower than 700h.
5. The signal lights can work normally under the temperature -30050*0.

Adopt standard:

1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA.1972and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC60598-1 -2008.
3. Conform to the technical condition of marine electric signal light GB/T 3028-1995.

Production Authentication:

Passed the authentication of CE;

Specifications
