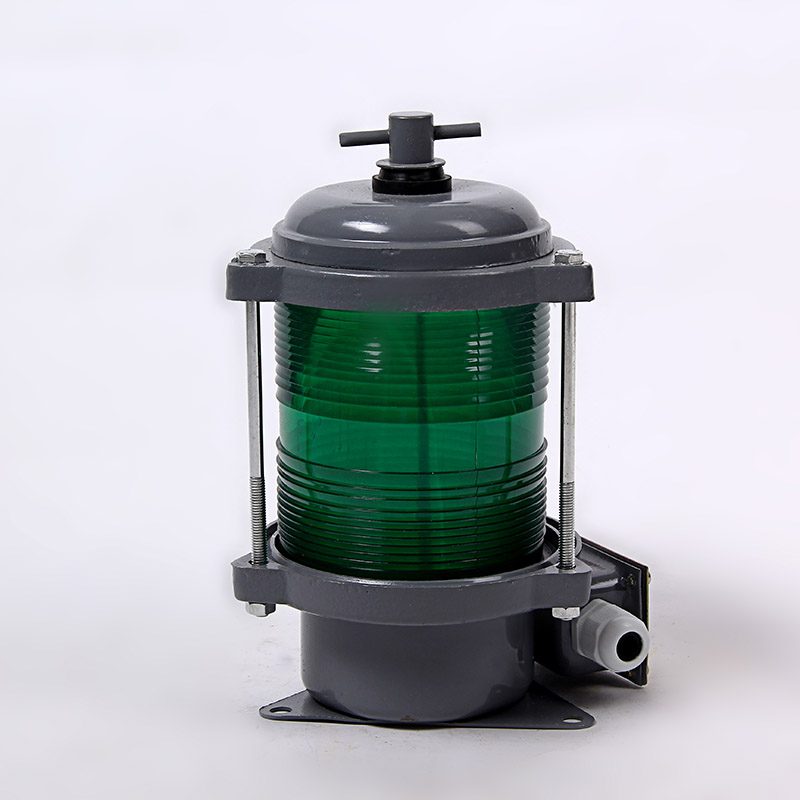

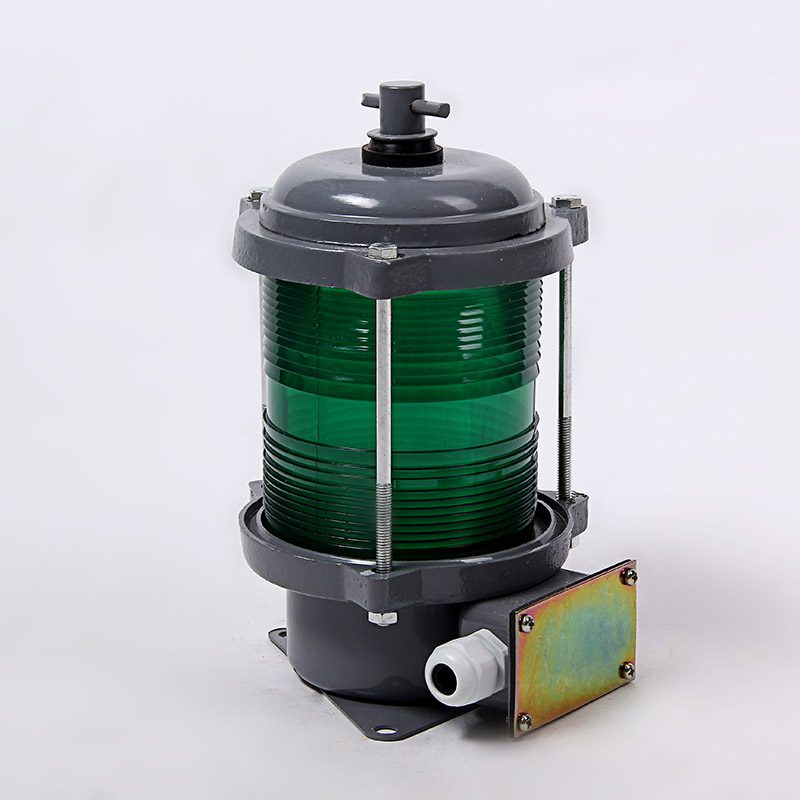

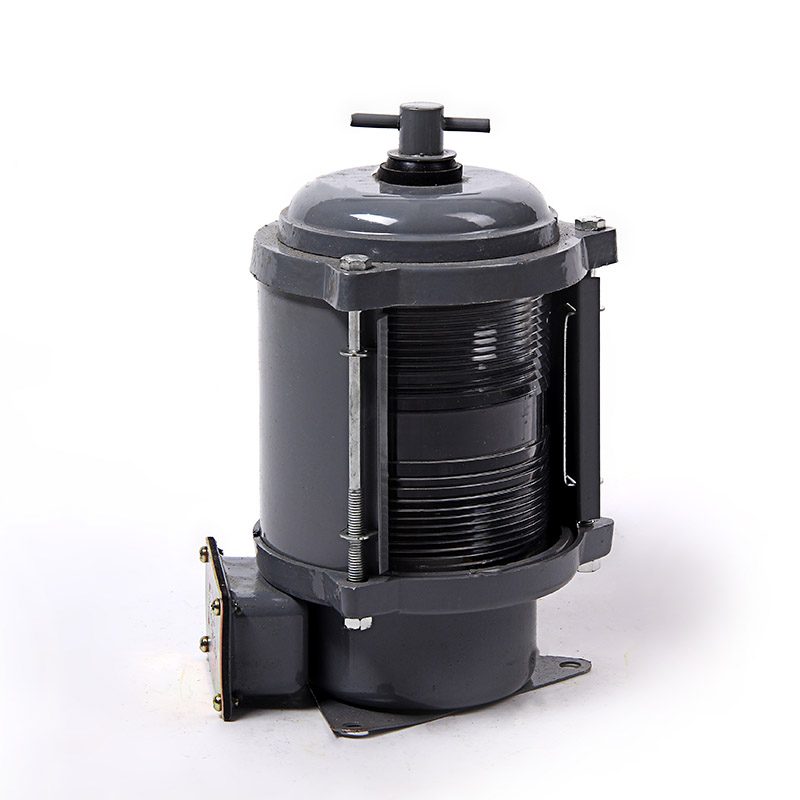

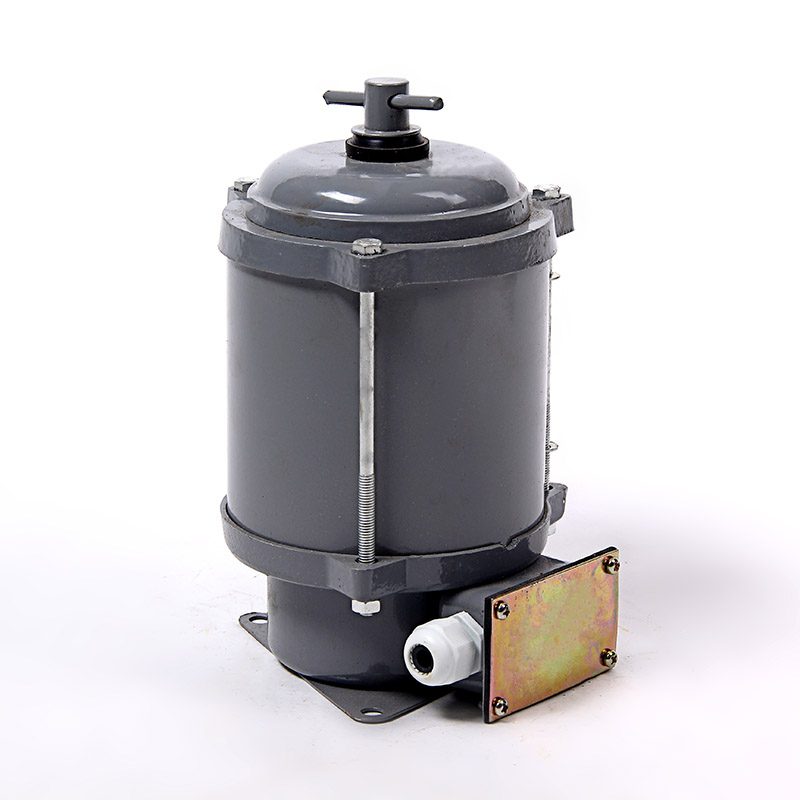

Marine Single-Deck Navigation Signal Light – CXH-2C
Marine Single-Deck Navigation Signal Light – CXH-2C
Marine Single-Deck Navigation Signal Light – CXH-2C
Marine Single-Deck Navigation Signal Light – CXH-2C

Marine Single-Deck Navigation Signal Light – CXH-2C

The scope of application

Applied to the ships with the length 12m or above 12m (<50m) as lamp signal liaison when night navigation.

Products characteristic
  1. It is convenient to install and replace the bulb, and there are automatic leak holes in the bottom.
  2. The shell adopts metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistant rice.
  3. The lampshade adopts PC material, it has the feature of ultraviolet radiation resistant nee and does not discolor.
Adopt standard
  1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
  2. Conform to GB/T 3028-1995 standard.
Specification
Name Type Visibility Level arc Lamp holder Bulb Protection class Cable outside
diameter 		Color Material Weight
starboard light CXH1-2C 2n.m 112.5°





B15d











24V 30W











IP55











Φ10-Φ12





 Green steel 1.8Kg
port light CXH2-2C 2n.m 112.5° Red steel 1.8Kg
masthead light CXH3-2C 5n.m 225° transparent steel 1.8Kg
stern light CXH4-2C 2n.m 135° transparent /yellow steel 1.8Kg
all-round light CXH6-2C 2n.m 360° Red/
Green/
transparent		 steel 1.8Kg
