Marine Single-Deck Navigation Signal Light – CXH-2C
The scope
Fit for the ships with the length 12M as lamp signal liaison when night navigation.
Products characteristic
- It is convenient to install and replace the bulb, and there are automatic leak holes in the bottom.
- The shell adopts good quality metal material steel of copper, the surface is painted the special mold-powder, has the feature of corrosion resisting and shock resistance.
- The lampshade is made of PC, has the feature of ultraviolet radiation resistant nee and does not discolor.
Adopt standard:
- Conform to <THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA, 1972> and <GRADE ENTRY AND BUILDING NORMS FOR STEEL SHIPS>.
- Conform to GB/T 3028-1995 standard.
Specification
| Name | Type |
Visible
Dista nee |
Level Arc |
Lamp Holder |
Bulb |
Protection Class |
Color | Weight |
| starboard light | CXH1-3 | 1n.m | 112.5° |
B15d
|
12V/25W 24V/25W
|
IP55
|
Green | 1.05kg |
| Prot light | CXH2-3 | 1n.m | 112.5° | Red | 1.05kg | |||
| Masthead Light | CXH3-3 | 2n.m | 225° | Transparent | 1.05kg | |||
| Stern Light | CXH4-3 | 2n.m | 135° | Transparent / Yellow |
1.05kg | |||

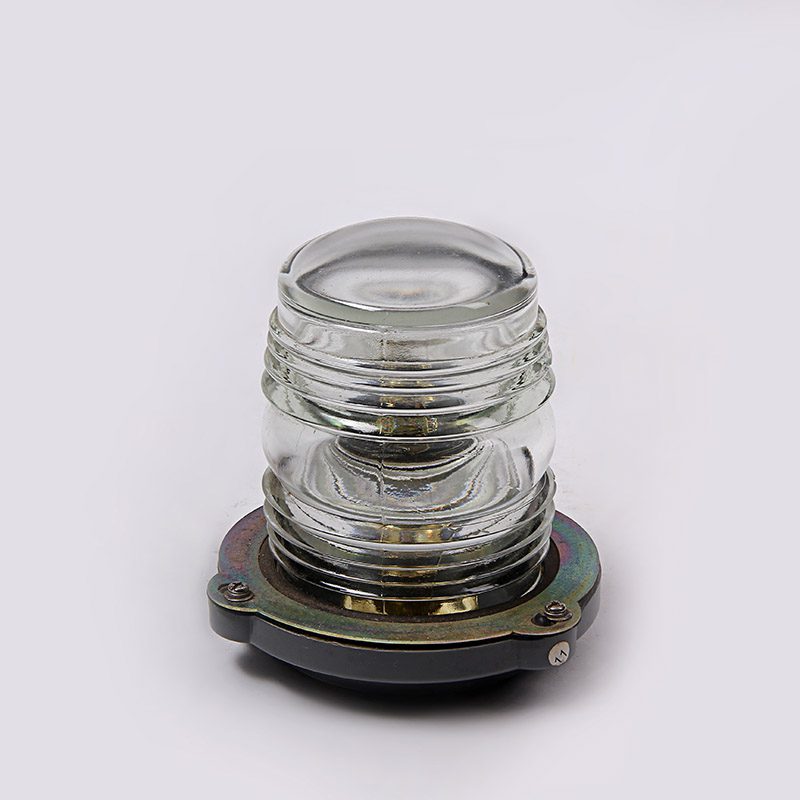

| All-around Light | CXH6-3 | 2n.m | 360° | Red/ Green/ Transparent |
0.85kg |
