Marine Spotlight – FDL
The scope apply
Fit for projecting illumination in outdoor place such as ship, dock port, store place and petroleum platform, etc.
characteristic

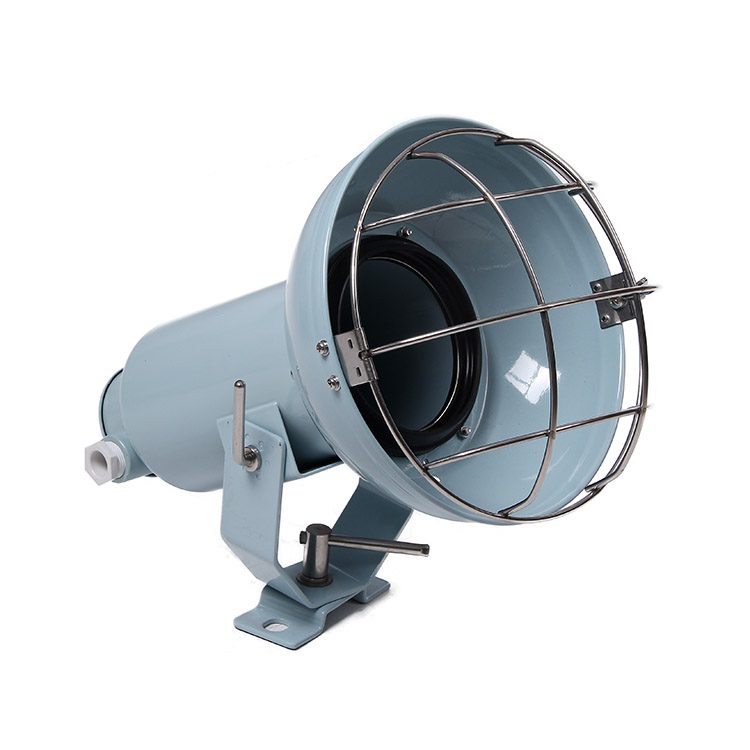

1、 The shell is made of good quality stainless steel, the bracket adopt good quality stainless steel, and has strong anticorrosive performance.
2、 The shell can adjust upside 58 °, down45° angle, rotate for 360 degrees horizontally.
3、 Conform to (GRADE ENTRY AND BUILDING NORMS FOR STEEL SHIPS>.
4、 Adopt Japanese JIS C8105-2-5-2003srandard.
Specifications
| Type | Voltage | Electric light source | Luriiousflux | Using life | Cable outside diameter | Lamp holder | Protection class | Weight | |
| FDL-R12 | 220V/50HZ | incandescent lamp spot type | RS100.150.200WH | 760.1280.1840 | 2000h | Φ12- Φ14 | E26/E27 | IP55 | 2.2Kg |
|
220V/60HZ 110V/50HZ |
incandescent lamp wide type | RS100.150.200WH | 700.1160.1550 | ||||||
| Self-ballast mercury lamp | BHRF160WH | 2100 | 8000h | ||||||
| Type | Voltage | Electric light source | Luminous flux | Using life | Cable outside diameter | Lamp holder | Protection class | Weight | |
| FDL-R13 |
220V/50HZ 220V/60HZ 110V/50HZ |
Incandescent lamp spot type | RS300.500WH | 2920.5120 |
2000h |
Φ12~ Φ 14 | E39/E40 | IP55 | 32Kg |
| Incandescent lamp wide type | RS300.500WH | 2920.5120 | |||||||
| Self-ballast mercury lamp | BHRF300.500WH | 4100.9000 | 9000h | ||||||
| Halogen lamp | JD250.500WH | 3750.7000 | 2000h | ||||||
| FDL・R14 |
220V/50HZ 220V/60HZ 110V/50HZ |
Mercury lamp dear type | RS250.300.400WH | 8700.9600.13000 |
12000h |
Φ12-Φ14 | E39/E40 | IP55 | 3.3Kg |
| Mercury lamp fluorescent type | BHRF200.M300.400X |
7000.9500. 11500.15500 |
|||||||
| Incandescent lamp spot type | RS100WH | 10800 |
2000h |
35Kg | |||||
| Incandescent lamp wide type | RF750.100WH | 8100.10800 | |||||||
