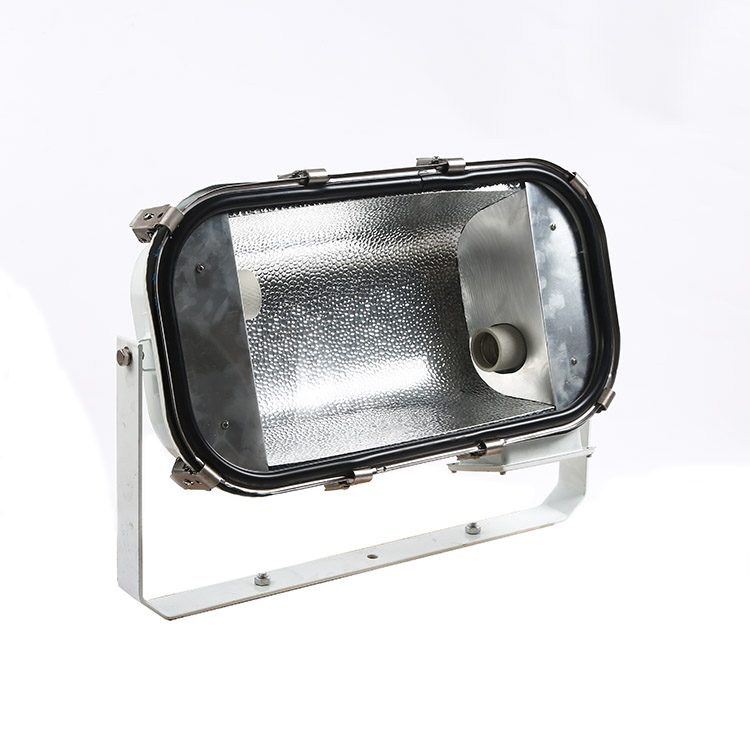

Marine Spotlight – TG19


The scope of application

Fit for projecting illumination in outdoor places such as a ship, dock pork, store place and stadium.


Products characteristic

Made of good stainless steel, the lampshade is made of toughened glass, and high-purity aluminum reflector, it has a good reflecting effect.

Has a compact structure and beautiful appearance, small volume. Has fine seal function and anticorrosive performance, adjust angle upside 90°, down 45°.

Production authentication

Approved by the CCSfChina Classification Society).

Conform to International IEC Norm and National standard GB7000.7-2005.

Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.

Specification
Type Voltage Power luminous flux illuminant Cable outside diameter Lamp holder Protection class Weight Annex
TG19

220V/50HZ

220V/60HZ

110V/60HZ

2x250W 26000 High-pressure
sodium lamp

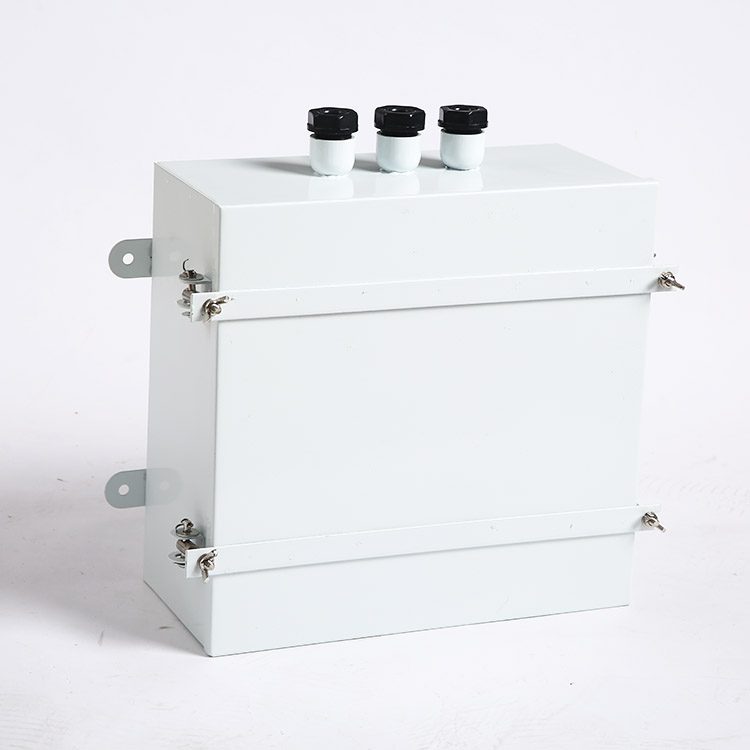

Φ12-Φ14 E40 IP56 14.5kg ballast-box
2x400W 47000
2x250W 20500 metal halide
lamp
2x400W 36000
