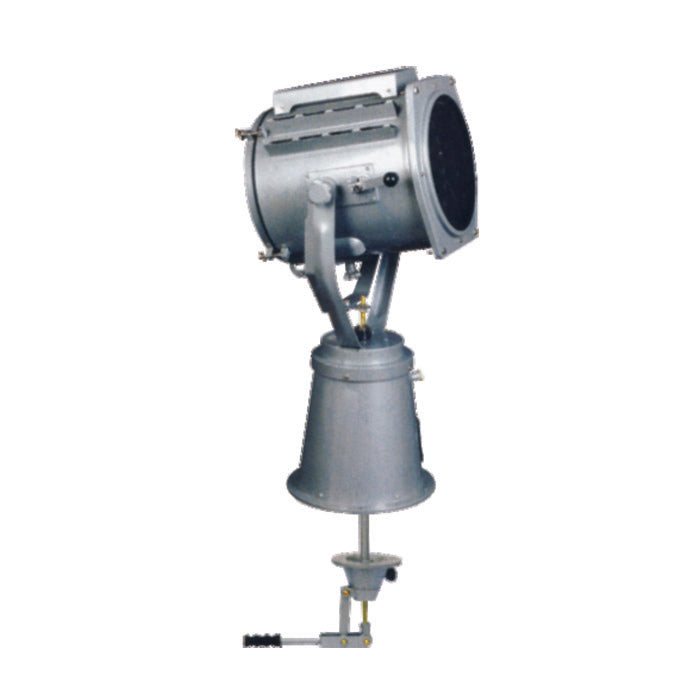

Marine Spotlight – TG3
The scope of application
Applied to signal exchange among ships, the visibility distance is 15n.m.
Products characteristic
- Equipped focus nut under the light shell, can adjust lighting focus.
- Inside the light equips grid, joystick, and can send the lighting signal according to the requirement.
- Can rotate for 180° horizontally, and pitching 30° by the lift-hole or controller.
Specification
type | Voltage | Power | Lamp holder | illuminant | luminous flux | material | Protection class | Cable outside diameter |
Weight | annex |
TG3 | DC110V | 1000W | E40 | incandescent focus bulb |
17000 | steel | IP56 | Φ1O-Φ12 | 47.5kg | lifter |

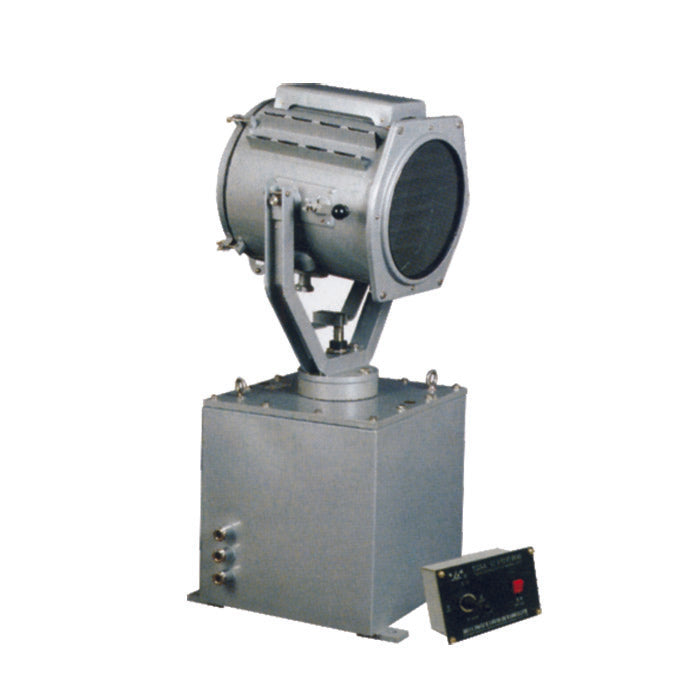

TG3-A | AC220V | 1000W | E40 | 17000 | steel | IP56 | Φ1O-Φ12 | 82kg | controller |
