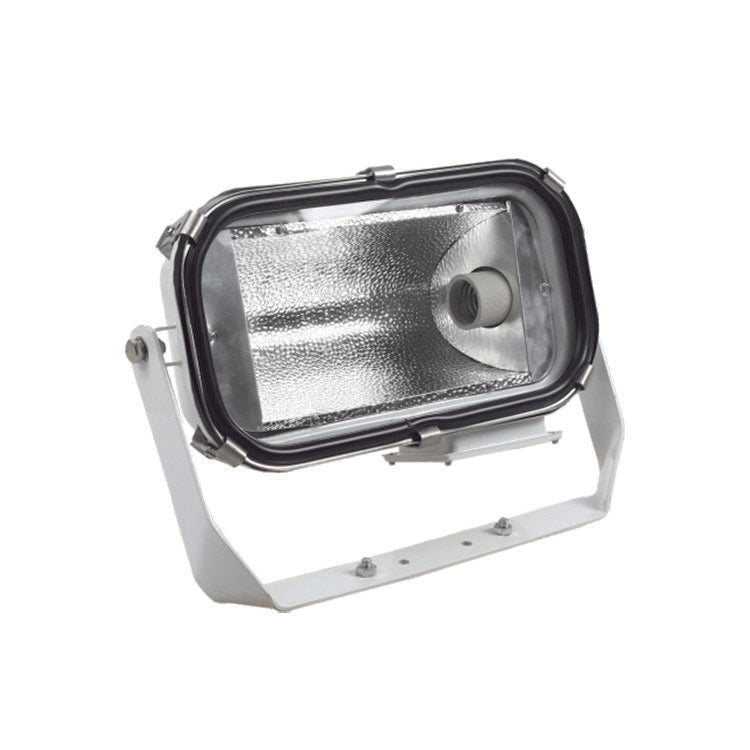

Marine Spotlight – TG4/TG5/TG6


The scope of application

Applied to project!ng illumination in outdoor places such as ship, dock, port, store place and petroleum platform etc.

Products characteristic
  1. Made of good quality stainless steel, the lampshade is made of toughened glass, and high-purity aluminum reflector, it has good reflecting effect.
  2. Compact structure and beauty appearance, good seal and anticorrosive performance, adjust upside 90°, down 45° angle.
Production authentication
  1. Conform to International IEC Norm and National standard GB7000.7-2005.
  2. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.
Specifications
type Voltage Power luminous flux illuminant Cable outside diameter Lamp holder Protection class Weight annex
TG4 220V/50HZ





220V/60Hz

500W 8500 Tungsten halogen lamp Φ10-Φ12 E40 IP67 6kg Illuminant type JTT
1000W 22000
TG5 220V/50HZ





220V/60HZ

110V/60Hz



250W 26000 High-pressure
sodium lamp




Φ10-Φ12







E40







IP67







8kg

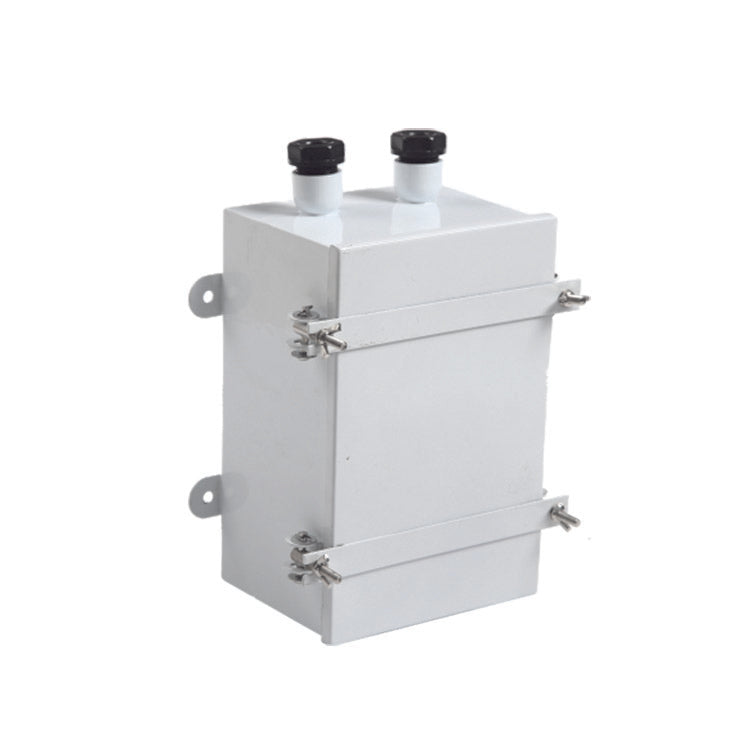

ballast-box



400W 47000
TG6 250W 20500



metal halide lamp

400W 36000
