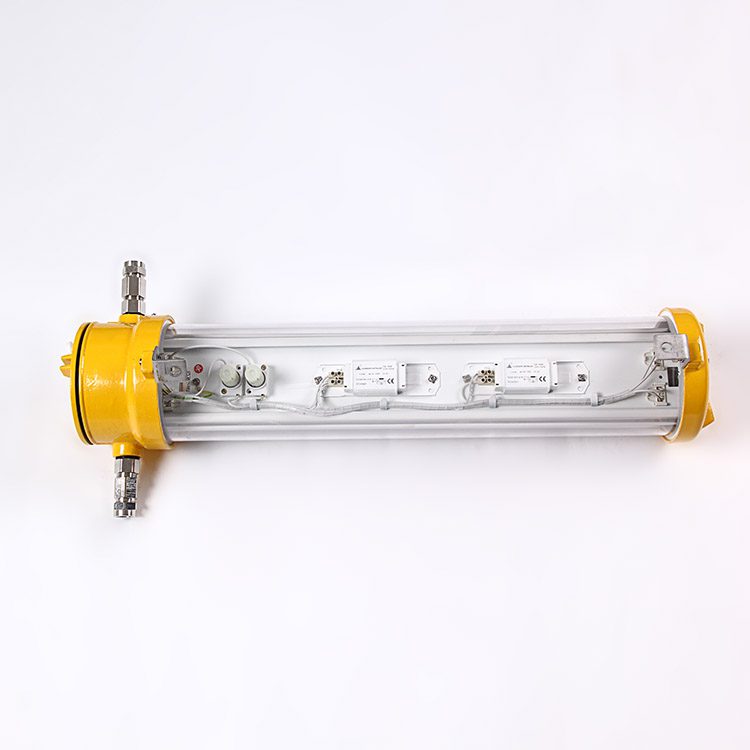

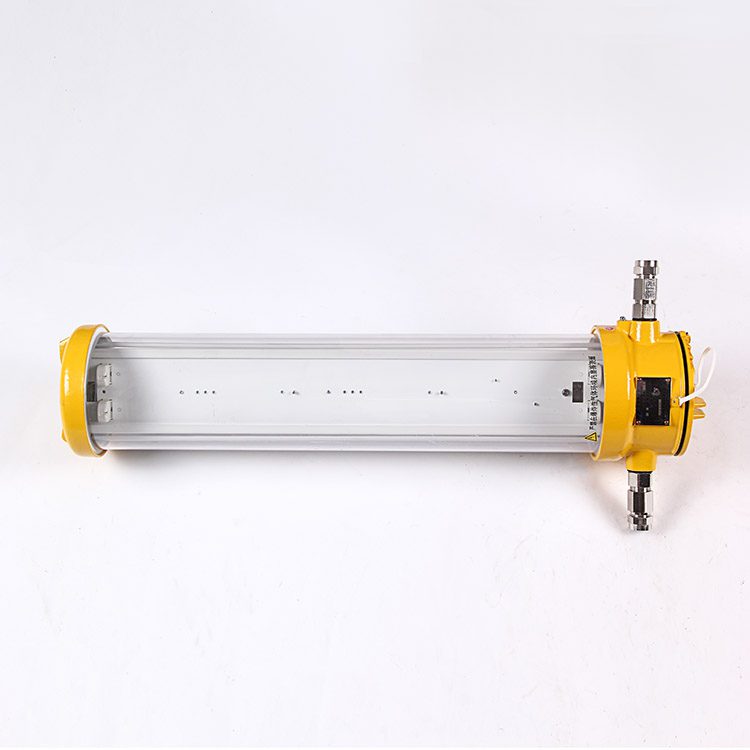

Marinelight Explosion Proof Fluorescent Pendant Light
Marinelight Explosion Proof Fluorescent Pendant Light
Marinelight Explosion Proof Fluorescent Pendant Light

Marinelight Explosion Proof Fluorescent Pendant Light

Specifications
Type Explosion-proof Mark Explosion-proof Quality certificate number Voltage Power Weight L L1
CFY20-2 Exd IICT6 CNEx 07.0731 110V/220V 20Wx2 7kg 556 775
CFY30-2 Exd II CT6 CNEx 07.0731 110V/220V 30Wx2 8 kg 861 1080
CFY40-2 Exd IICT6 CNEx 07.0731 110V/220V 40Wx2 9 kg 1166 1385
CFY20-1 Exd II CT6 CNEx 07.0731 110V/220V 20Wx1 7kg 556 775
CFY30-1 Exd II CT6 CNEx 07.0731 110V/220V 30Wx1 8kg 861 1080
CFY40-1 Exd II CT6 CNEx 07.0731 110V/220V 40Wx1 9 kg 1166 1385

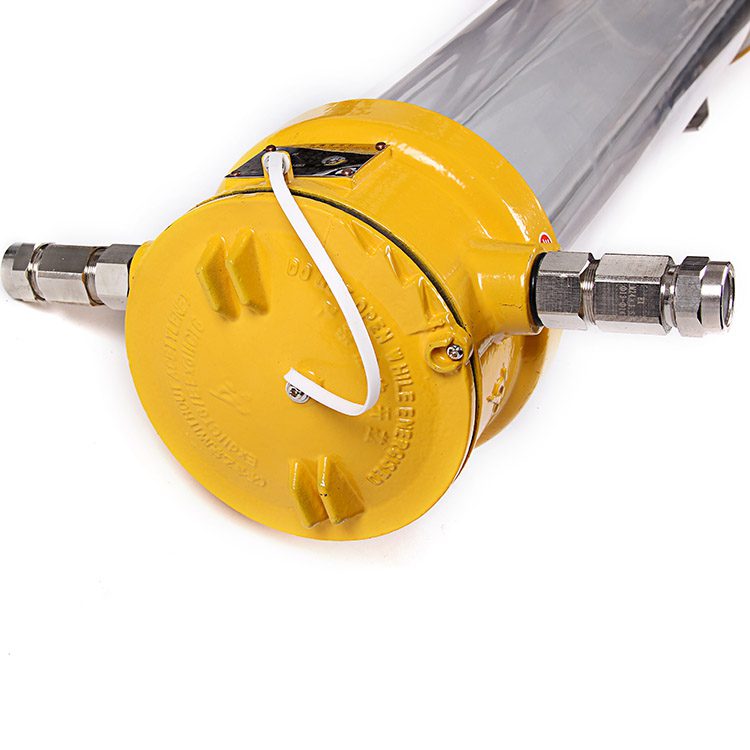

Remark: CFY series of explosion-proof lights can be used reliably in the dangerous explosive place(zone 1, zne2)with temperature group T1 ~T6, also fit the operation illumination in the corrosive area. The shell adopts stainless steel or cast aluminum. and transparent lampshade adopts glass or polycarbonate. They conform to IEC92-306-1980 standard, passed the examination of National Explosion – proof Test Center, and was approved by CCS(China Classification Society). The gland is copper, the screw is M24x1.5, fit for armored cable Φ14-Φ18mm.

Adopt Standard: Conform to GRADE ENTRY NORMS FOR STEEL SHIPS and national standard GB3836.GB1 2045.EN50014, EN50018.EN60079.
